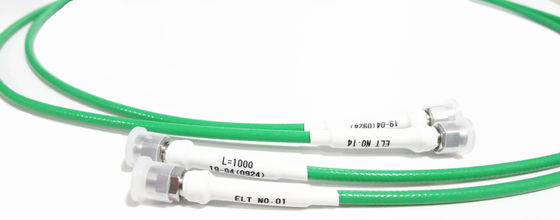

2.92mm Series Male Stainless Steel Connector For Cable Assemblies Millimeter Microwave

Large Image : 2.92mm Series Male Stainless Steel Connector For Cable Assemblies Millimeter Microwave Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS
Model Number:	K-J130G/K-J130G-1000

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,000 pcs Per Month

Contact Now

Detailed Product Description

Product Name:	2.4mm Cable Assembly	Impedance:	50Ω
Certificate:	CE ROHS	Type:	2.4mm Male/female To Male/female
Freqeency Range:	DC~40GHz	Cable Length:	400mm
VSWR:	≤1.25	Surface Mount:	Threaded Connection
High Light:	2.92mm Stainless Steel Connector , Millimeter Microwave Stainless Steel Connector , Male RF Cable Assemblies 2.92mm

2.92mm Series Male Stainless Steel Connector for Cable Assemblies Millimeter Microwave

K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.

Specifiacation:

Impedance	50 Ω
Frequency Range	DC - 33 GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤1.05+0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.5 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PTFE
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m
Insertion loss	<.04 sqrt(f(GHz)) dB
Temperature range	-65 ℃~+165 ℃
Contact pin	Gold Plating
