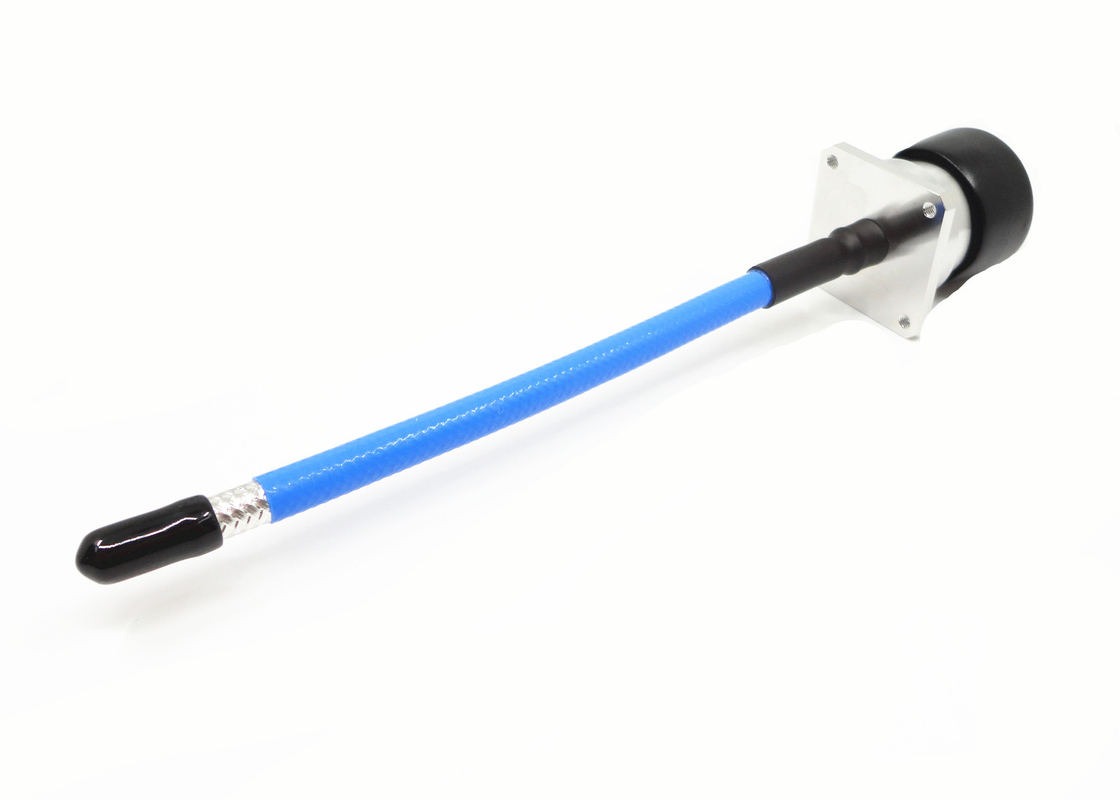

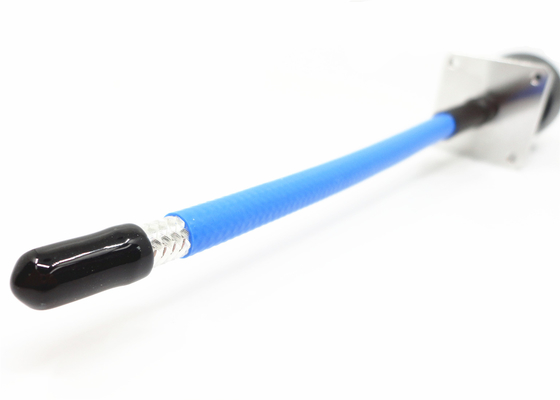

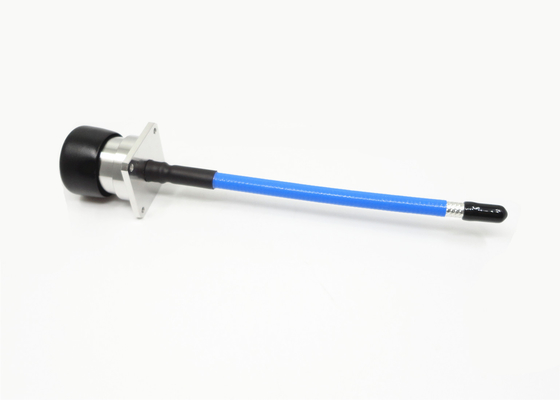

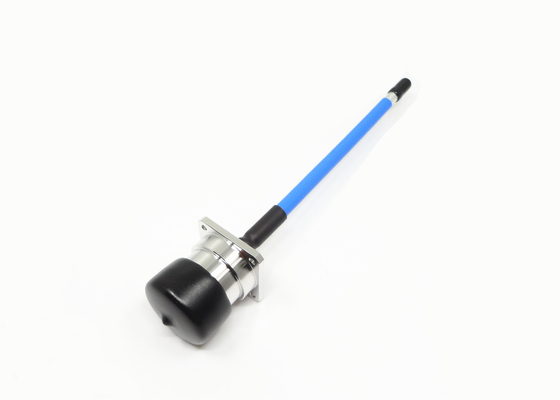

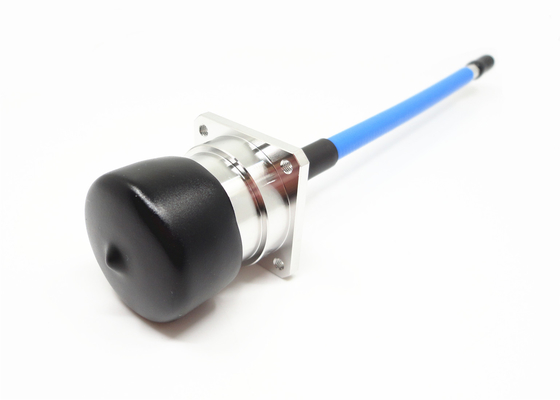

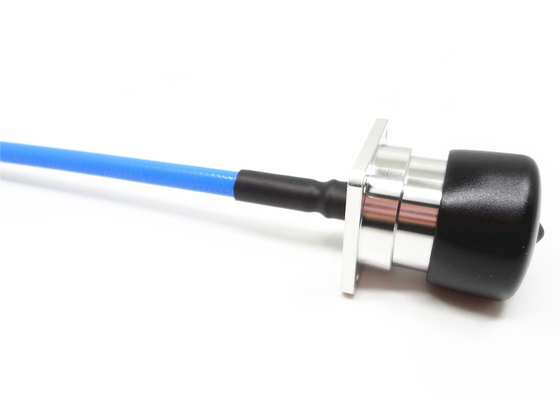

| Product Name: | Din 7/16 RF Coaxial Conector | Material: | Tin Phosphor Bronze Silver Plating |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~7.5GHz |
| Model: | 7/16-J250-179 | Gender: | Male |
| High Light: | 7/16 DIN Straight Male RF Connector,.250 Coaxial Cable Male RF Connector,Straight RF Cable Assembly |
||
The name of the 7/16 series is derived from the metric dimensions of the connector interface: inner contact diameter 7mm, outer contact inner diameter 16mm. These connectors have excellent performance in terms of return loss and intermodulation distortion (IMD).
These connectors are very strong, very stable, and are mostly WATER-resistant, making them IDEAL FOR APPLICATIONS where vibration resistance and environmental protection ARE important. Since the 7/16 connector is designed to minimize signal distortion due to intermodulation, it is particularly suitable for base stations and broadcast communication systems.
Product Specification:
Electrical Characteristics
| Impedance | 50Ohm |
| Frequency range | DC~7.5GHz |
| PIM3 | ≤161dBc |
| VSWR | ≤1.15(0-3GHz) |
| Dielectric Withstanding Voltage | 2700V rms |
| Test voltage | 4000V rms |
Material & Mechanical Characteristics
| Center Conductor | Tin phosphor bronze, Silver Plating |
| Insulators | PTFE |
| Body | Brass Ternary Alloy Plating |
| Other Metal Parts | Brass, Alloy Plating |
| Gasket | Silicone Rubber |
Product Features:
The coaxial cable of the radio frequency components (7/16 DIN/N/TNC/BNC/FME/U.F L/IPEX L9 / SMA/SMB/MMCX MCX/OEM)
Our custom RF cable assemblies are built in worldwide
50 Ohm RF cable assemblies can be ordered using the following connector types, such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, 75 Ohm cable assemblies can be manufactured using the following 75 ohm connectors, such as BNC, F, N, SMB, SMC, TNC, and Mini SMB
Rf cable assemblies can be produced in a variety of different connector types and custom lengths depending on your needs and applications
If you need a special RF cable assembly configuration not found here, you can call our sales department to create your own RF cable assembly
The RF cable assembly includes: RG141/RG142/RG174/RG178/RG179/RG180/RG187/RG196/RG1213/RG214/RG218/RG219/RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG 402/RG405/RG58/U
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no defective products
• No assembler training required
• No capital investment for assembly preparation
• Precisely matched cables and connectors
The same manufacturer
• Xi 'an Elite electronic quality assurance
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Applications:
* Computer/LANs
* Base Station
* Automotive
* Basic facility
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Radio, TV aerial system
