Aluminum Alloy with Nickle Plating Micro D Connector Female Receptacle with Mating Cable White Wire 0.1mm2-0.15mm2
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Center Conductor: | Copper Alloy, Gold Plating | Outer Conductor: | Aluminum Alloy, Nickle Plating |
|---|---|---|---|
| Insulation Resistance: | ≥5000MΩ | DWV: | 800V |
| Mating Cable: | AFR-250, White Wire 0.1~0.15mm2 | Insulation Dielectric: | PBT |
| Contact/Pin: | 15-pins | Contact Gender: | Female Socket/Receptacle |
| Operating Temp: | -55℃~+125℃ | Storage Temp: | -55℃~+125℃ |
Product Description:
The J30J Series Connector also named as micro D connectors is a high-quality product designed for various applications that require reliable electrical connections. This connector features a J30J Micro Rectangular Connector with Clamp design, making it suitable for compact spaces while ensuring secure connections.
Elite Electronic provides innovative designs to help customers solve allowable space problems.The Technical department is fully equipped with 3-D CAD modeling, state-of-the-art electrical test equipment and environmental test chambers; enabling ongoing research and development that contributes to our design solutions.
We also have smaller Micro rectangular connectors to solve the problems of narrow space such as our J56J Series, J55A Series, also the hermeticlly sealed Micro rectangular connectors.
Features:

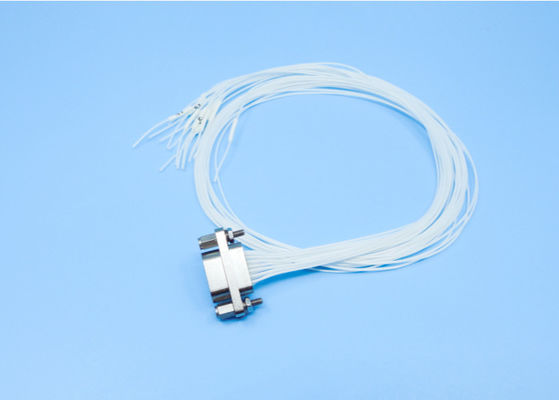

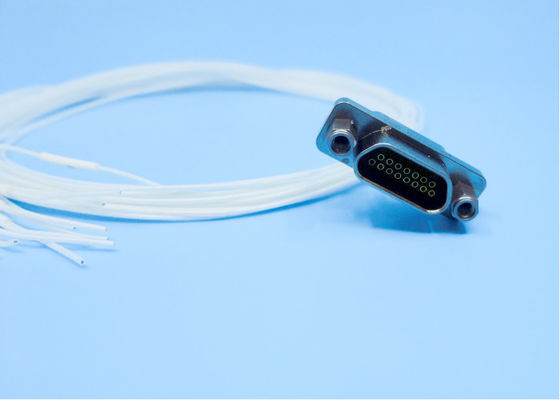

- Product Name: Micro D Female Receptacle with wire length 500mm
- Insulation Resistance: ≥5000MΩ
- Contact/Pin: 15-pins
- Mating Cable: AFR-250, White Wire 0.1~0.15mm2
- Operating Temp: -55℃~+125℃
- Storage Temp: -55℃~+125℃
- Available Pins: 9pin, 15pin, 21pin, 25pin, 31pin, 37pin, 51pin, 66pin, 74pin, 100pin.
Technical Parameters:
| Mating Cable | AFR-250, White Wire 0.1~0.15mm2 |
| DWV | 800V |
| Contact/Pin | 15-pins |
| Outer Conductor | Aluminum Alloy, Nickle Plating |
| Center Conductor | Copper Alloy, Gold Plating |
| Insulation Dielectric | PBT |
| Insulation Resistance | ≥5000MΩ |
| Operating/Storage Temp | -55℃~+125℃ |
| Contact Gender | Female Socket |
| Wire Length | 500mm |
| Available Wire Length | 200mm, 300mm, 500mm, 1000mm |
Outline Dimension of J30J Micro D Female Receptacle with wire lenght 500mm (Unit : mm)
Applications:
J30J Series Connector with rugged construction, making it suitable for harsh conditions and industrial settings. The connector is designed to withstand a wide operating temperature range from -55℃ to +125℃, ensuring consistent performance in extreme environments.
J30J Micro D connectors are widely used in the fields of aerospace, aviation, navigation, satelite, rader, communications, electronics industry.
Customization:
Customize your J30J Series Connector for the ultimate solution tailored to your needs.
Elite Electronic can customize the J30J with different contacts such as 12 pins, 24 pins, 35 pins, 39 pins, 41 pins. But we suggest customer use the normal pins, because the price is more cheaper.
