|Product Name:||J30J Miniaturized Rectangular||Contact Type:||Micro Twist Pin, Gold Plating|
|Termination Type:||Soder / Welding Wire||Contact Spacing:||1.27mm|
|Material:||Aluminum Alloy||Section Area:||0.1-0.15mm²|
rectangular j30j connector,
micro d connector

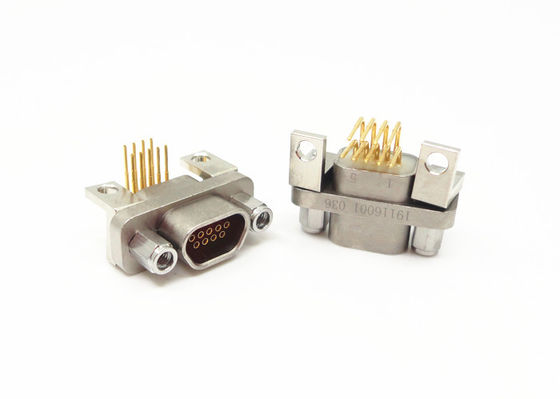

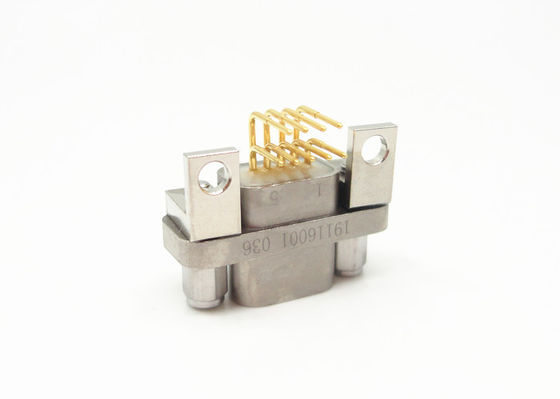

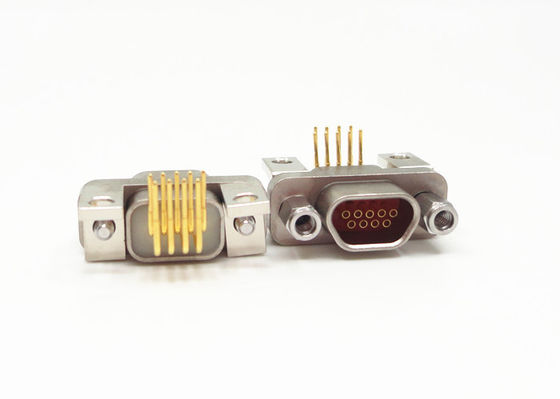

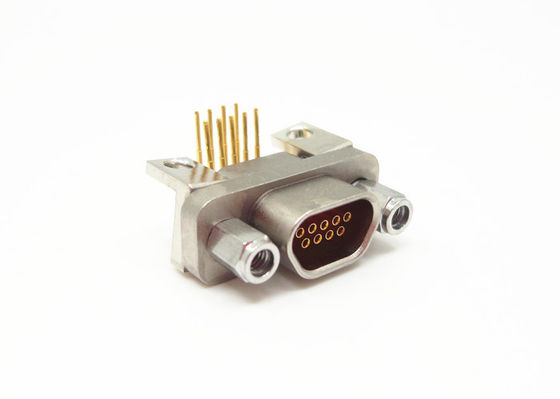

J30J Series Right Angle 9pins Receptacle Miniaturized Rectangular Micro-D Connector
- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centres
- Medical applications
- Board to Cable
- Surface Mount (SMT) Board to Cable
- 0.635mm,1.27mm,1.91mm contact spacing
- 1, 2, 3 ,4-raw options,
- Twist pin, high contact density
- MIL-DTL-83513 qualification
- Straight, right-angle models choice
- Space and weight saving.
- Excellent resistance to shock and vibration.
- Low contact resistance, high current capability, high dielectric strength.
- Custom designed connectors and cable assemblies.
- The termination style is crimp contact, and the reseau is (row × line) 1.27×2.54.
- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series
This series product is equivalent to the American MDM series products, etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. This product performance comply with GJB2446A( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.
The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.
|Insulation Resistance||≥ 5000 MΩ|
|Dielectric Withstand Voltage||800|
|Environmental Temperature||-55℃ ~ + 125℃|
|Relative Humidity||up to 95% at +40℃|
|Vibration||10Hz~ 2000Hz 196m/S²|
|Total acceleration RMS||23.1G|
J30J-ZKW Detailed Drawing: (Unit:mm)
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
