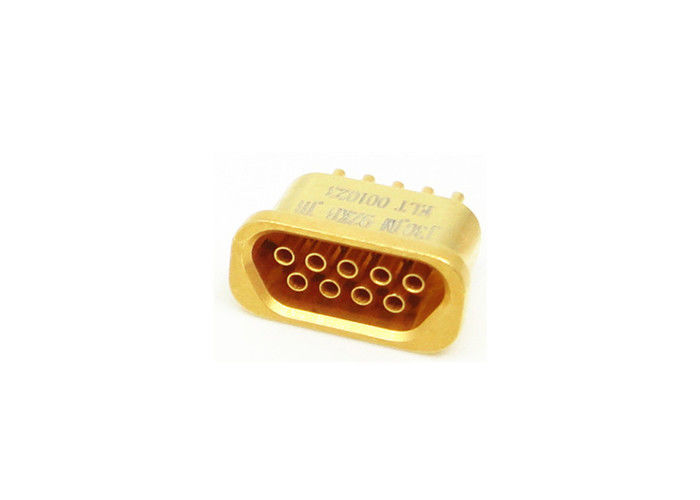

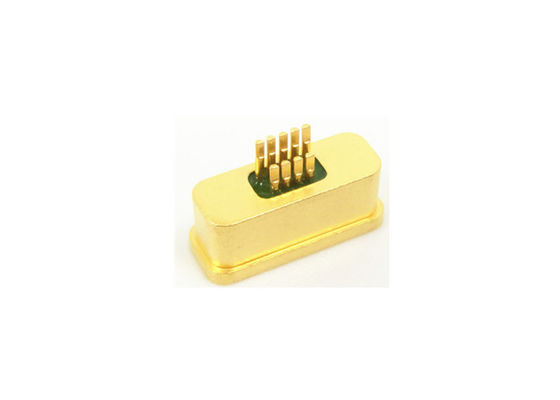

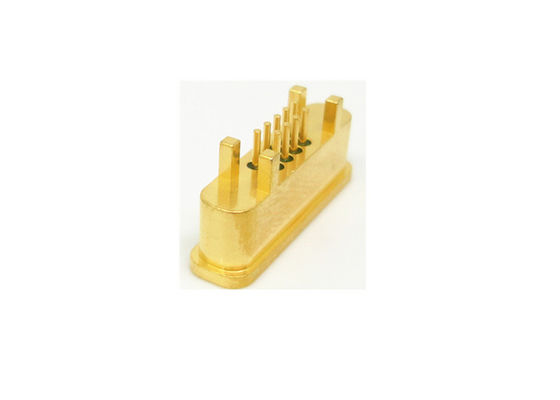

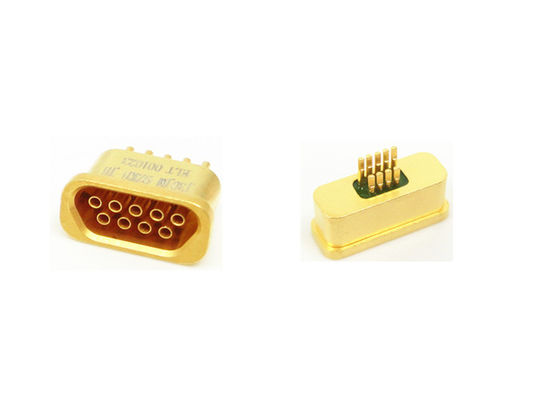

Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated

Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated
Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated

Large Image :  Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: J30JM-9TJL
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within in 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Out Shell: Aluminum Alloy Section Area: 0.1-0.15mm²
Standard: MIL-DTL-83513 Current Rating: 3A
Contact Type: Micro Twist Pin, Gold Plating Product Name: J30JM,Mirco-D, D-sub, MDM
Type: Receptacle Wire: Color Coded
Contact: 9 Pin Palting: Gold Plating
High Light:

rectangular j30j connector

,

micro d connector

Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated



J30JM micro rectangular female connectors are hermetic sockets with dielectric in glass and contact spacing 1.27mm. For end termination styles, they can be applicable to wires with sectional area Φ0.1-0.15mm2, or soldered onto PCB directly. These connectors are designed exclusively for the conditions where hermetic sealing is requested. They have characteristics of small size, light weight, reliable connection, excellent electromagnetic shielding effectiveness, vibration and shock resistance etc.






Contact Arrangements

(Face View of Pin insert)


Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated 0

NOTE:

1, The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.

2, J30J-9TJL, the "TJ" means "Plug"

Specification:

Rated voltage: 100V

Current Rating: 3A

Hermecity: ≤1.01 X 10E-09 Pa·m³/s
Contact Resistance: ≤10MΩ
Insulation Resistance: ≥ 1000 MΩ
Dielectric Withstand Voltage: 300V

Durability: 500 cycles
Environmental Temperature: -55℃ ~ + 125℃
Relative Humidity: +40℃ up to 95%
Vibration: 10Hz~ 2000Hz 196m/S²
Total acceleration RMS: 23.1G
Impact: 735m/S²





Outer Dimension Drawing


Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated 1



Model No. L L1 Mating Plug NOTE
J30JM-9ZK 9.2 8.2 J30JB-9TJ 1. ZK=Socket /Female (receptacle)
2. TJ=Pin /Male (plug)
3. M=Hermetic
4. Contact layout shell size:
--9,15,21,25,31,37
5. JH=Bonding surface
J30JM-9ZK-JH 9.2 8.2 J30JB-9TJ
J30JM-15ZK 13 12 J30JB-15TJ
J30JM-15ZK-JH 13 12 J30JB-15TJ
J30JM-21ZK 16.8 15.8 J30JB-21TJ
J30JM-21ZK-JH 16.8 15.8 J30JB-21TJ
J30JM-25ZK 19.3 18.3 J30JB-25TJ
J30JM-25ZK-JH 19.3 18.3 J30JB-25TJ
J30JM-31ZK 23.2 22.2 J30JB-31TJ
J30JM-31ZK-JH 23.2 22.2 J30JB-31TJ
J30JM-37ZK 26.9 25.9 J30JB-37TJ
J30JM-37ZK-JH 26.9 25.9 J30JB-37TJ





Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated 2 Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated 3
Applications:

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centers
- Medical applications
- Cable to Cable
- Board to Cable
- Surface Mount (SMT) Board to Cable



Features:

Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated 4 Hermetic Seal 9 Pin Contact Micro-D Rectangular J30JM Series Connector with Gold Plated 5



-- Hermetically Sealed by Sintered Glass
-- Contact Spacing: 1.27 mm (0.05")
-- Wire size: 0.1-0.15 mm²
-- 1, 2-raw options
-- 9-37 contacts
-- Space and weight saving.
-- Excellent resistance to shock and vibration.
-- The end can be soldered directly to PCB



Types:

- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series

NOTE:
We can supply over 1000 types of Miro-D J30J Series connectors, if it is not match with your request,pls contact us.
