| Out Shell: | Aluminum Alloy | Contact Pin: | 21 |
|---|---|---|---|
| Material: | Metal | Contact Spacing: | 1.27mm |
| Section Area: | 0.1-0.15mm² | Standard: | MIL-DTL-83513 |
| Contact Type: | Micro Twist Pin, Gold Plating | Product Name: | J30J,Mirco-D, D-sub, MDM |
| Type: | Right Angle | Ceritification: | ROHS ISO-9001-2015 |
| High Light: | Micro-D J30J Series Connector,21 Pins MDM Connector,D Subminature MDM Connector |
||

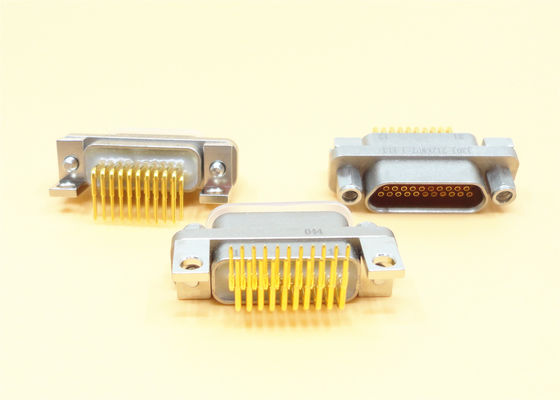

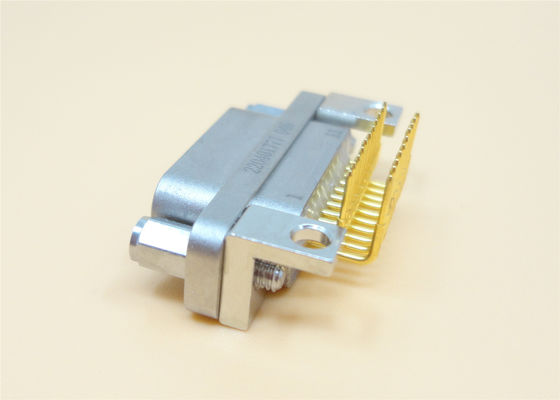

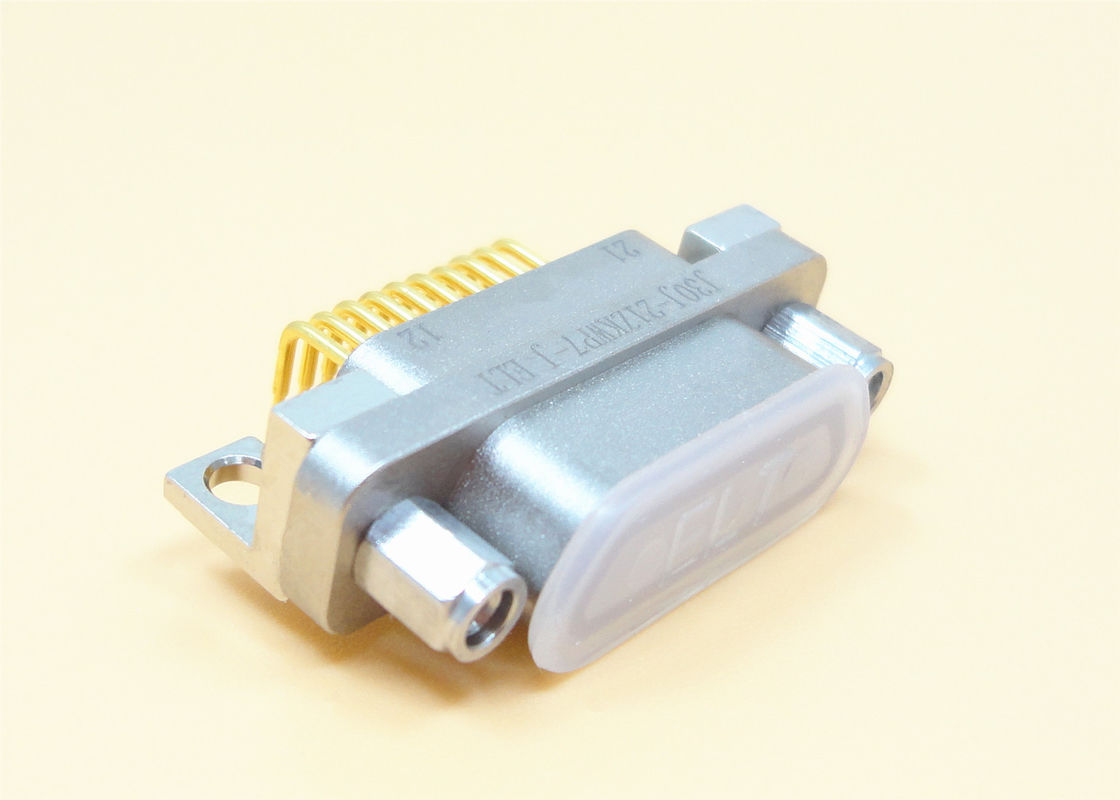

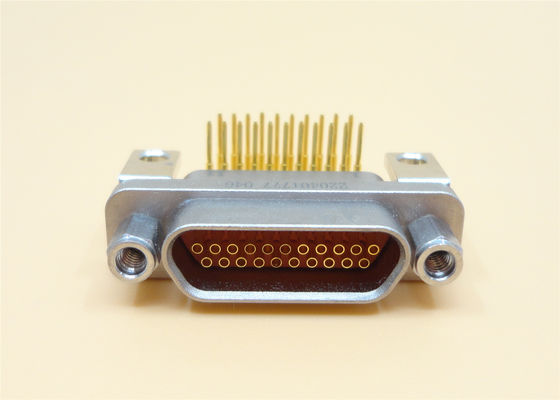

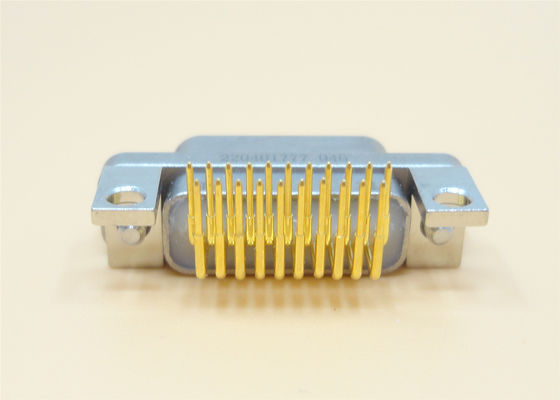

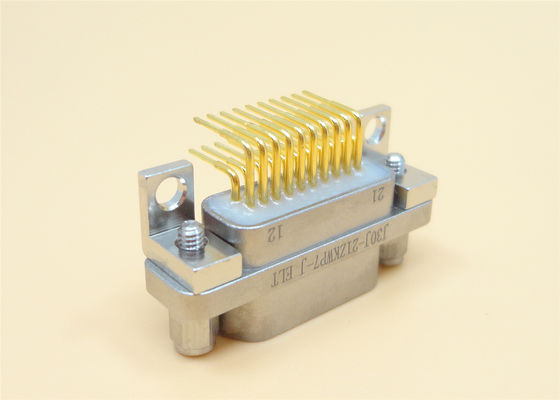

Right Angle Micro-D Rectangular J30J 21 Pin MDM Connector for PCB
Micro-d rectangular j30j product is equivalent to American MDM series products. The shell is made of aluminum alloy, and the contact spacing is 1.27mm. This j30j connector is suitable for wire core cross-sectional area of 0.1-0.15mm square. The performance of this product conforms to gjb2446a (General specification for rectangular electrical connector with micro polarized housing), which is equivalent to mil-dtl-83513, and is divided into ordinary (housing) and improved (housing). It has the characteristics of small installation space, light weight, reliable connection, good electromagnetic shielding and seismic resistance, and is widely used in electronic equipment and instruments with small space requirements.
Common connectors include 6 sub series: crimping contact connector, welding contact connector, PCB n-in-line connector, PCB n-j in-line connector, PCB w right angle connector and PCB W-J right angle connector.
| Contact Arrangements (Face View of Pin insert) |
| Current Rating | 3A |
| Voltage Rating | 300V |
| Insulation Resistance | ≥ 5000 MΩ |
| Durability | 500 cycles |
| Dielectric Withstand Voltage | 800 |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact | 735m/S² |
| Outer Dimension Drawing |
| Model No. | A | B |
| J30J-9ZKW-J | 19.6 | 14.35 |
| J30J-15ZKW-J | 23.5 | 18.2 |
| J30J-21ZKW-J | 27.4 | 22 |
| J30J-35ZKW-J | 29.8 | 24.5 |
| J30J-31ZKW-J | 33.6 | 28.3 |
| J30J-37ZKW-J | 37.4 | 32.2 |
*Standard: equivalent mil-dtl-83513
*9, 15, 21, 25, 31, 37 nuclear series products
*The termination mode of PCB is right angle contact, and the grid is 1.27 × 2.54 (row × Line)
*Torsion needle
*Applicable cable cross-sectional area is 0.1~0.15 mm2
*Cable cross-sectional area is 0.07 mm2
*1, 2, 3, 4-raw options
*High density connection
*Straight and right angle models are available
*Low contact resistance, high current capacity and high dielectric strength.
*Custom designed connector and cable assemblies.
*Straight and right angle model selection
*Save space and weight.
- Research centres
- Military
- GPS
- UAV
- Communications
- Satcom
