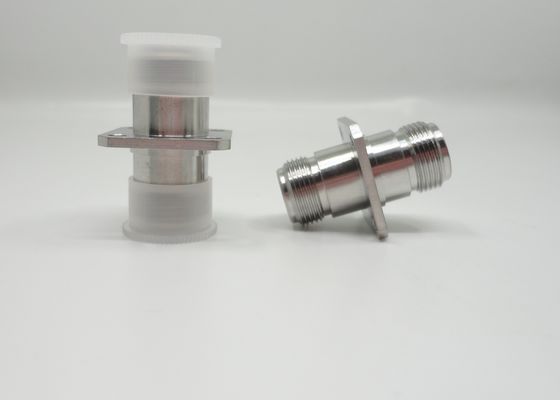

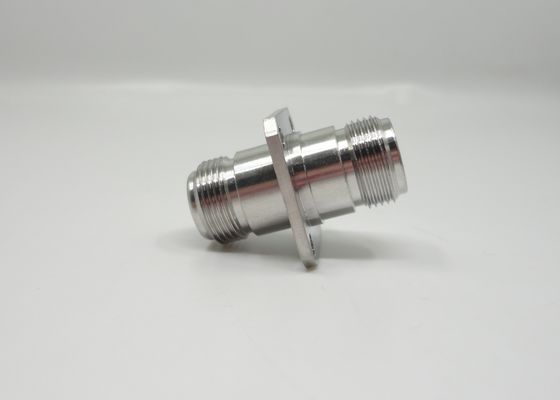

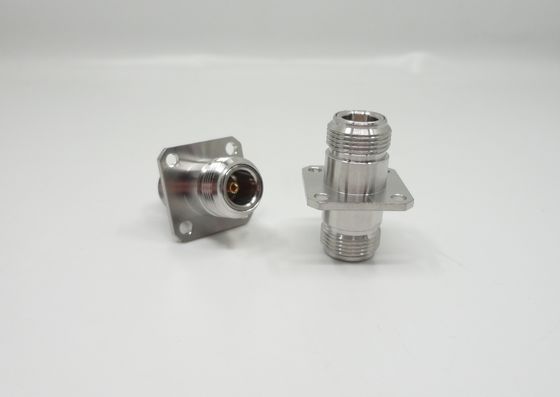

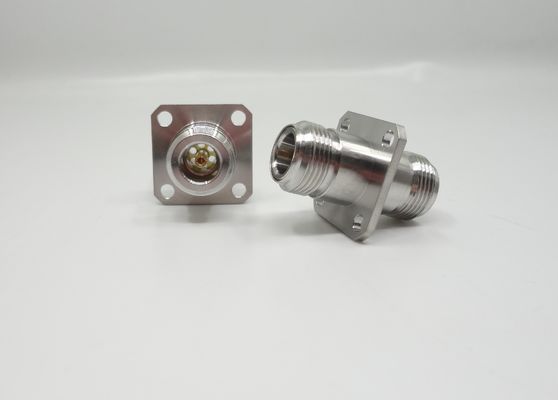

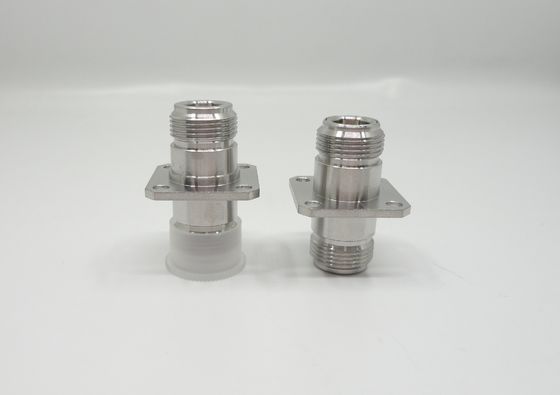

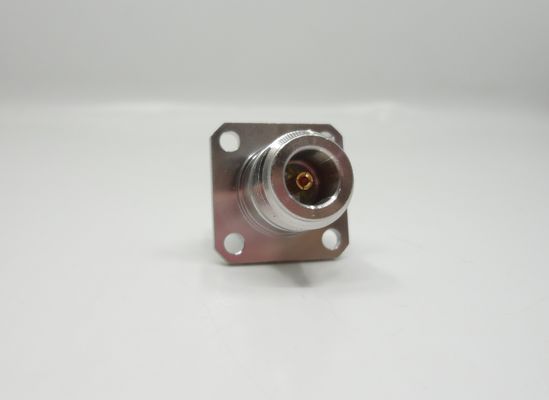

Stainless Steel N Type Straight 4 Hole Flange Mount Female to Female Coaxial Adapter for Equipment

Stainless Steel N Type Female to Female 4 Hole Flange Mount Coaxial Adapter

• Product Introduction

The N-type connector is a threaded medium-power connector known for its high reliability, strong vibration resistance, and excellent mechanical and electrical performance. It is suitable for connecting RF cables or microstrip lines in RF circuits of microwave equipment and digital communication systems. The connector features a wide frequency band, high performance, high reliability, and long lifespan. It is widely used in radio equipment and instruments under vibration and harsh environmental conditions, as well as in ground transmission systems to connect RF coaxial cables. The threaded structure of the N-type connector makes it particularly suitable for special applications compared to quick-lock type connectors. It is ideal for scenarios requiring extremely high protection levels or where other connectors cannot meet environmental factors such as temperature, pressure, or vibration.

• Specification of Stainless Steel N Type Female to Female 4 Hole Flange Mount Coaxial Adapter:

•  Outline Drawing of SS N Type Female to Female 4 Hole Flange Mount Coax Adapter:

• Features of SS N Type Female to Female 4 Hole Flange Mount Coax Adapter:

1. High Versatility: Suitable for various RF and microwave devices and systems.
2. Wide Frequency Range: Supports signal frequencies typically from 0 to 11 GHz, with enhanced types reaching up to 18 GHz.
3. Ease of Use: Features a plug-in connection method, making it easy to connect and disconnect, and can be reused.
4. High Reliability: Offers high robustness and reliability, along with excellent intermodulation performance.
5. High Mechanical Strength: Can withstand high power, high voltage, and high-frequency application environments.
6. Strong Anti-Aging Performance: Maintains stable performance even in harsh environments.
7. Excellent Contact and Signal Transmission Performance: Low contact resistance ensures good signal transmission quality.
8. High Weather Resistance: Uses a medium-sized screw-locking system, providing high weather resistance.

• Application of Stainless Steel N Type F to F 4 Hole Flange Mount Coaxial Adapter:

* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Avionics, radars
* Telecommunication systems
* Navigation systems
* Research centres
* Satellite communications

• Package of Stainless Steel N Type F to F 4 Hole Flange Mount Coaxial Adapter for air shipment:
