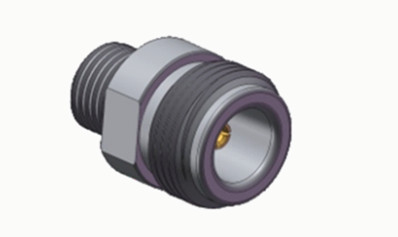

N Female Bulkhead RF Connector with Microstrip with M10X1
N-type connectors are precision-engineered, threaded coaxial interfaces renowned for their exceptional vibration resistance, optimized electrical performance, and extended frequency capabilities. While standard models typically support up to 11 GHz, our advanced configurations achieve operational bandwidths up to 18 GHz. These versatile connectors maintain signal integrity across diverse RF cable types and are widely employed in aerospace engineering, radar networks, microwave telecommunications, digital data transmission, and RF instrumentation platforms. We specialize in designing tailored N-type solutions to address specific application requirements and environmental challenges.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

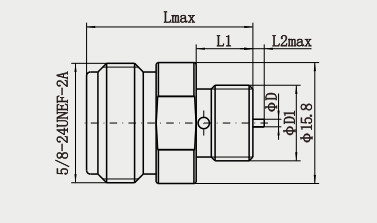

Detailed Drawing
Features:
1. Wide range of adaptability: Compatible with a wide range of RF cables (e.g. semi-rigid cables, flexible cables), can be converted with SMA, BNC, TNC and other connectors via adapters, suitable for microwave equipment, aerospace, radar, test instrumentation and other fields 245.
High power handling: suitable for high power RF applications, such as base stations, transmitters, satellite communications, etc., with power capacity superior to that of small connectors (e.g. BNC)36.
2.Convenient operation: threaded connection facilitates quick plugging and unplugging manually or with tools, and some models support solder-free crimping method4.
3. Potential problems: attention should be paid to impedance matching (50Ω and 75Ω can not be mixed), increased reflection due to wear and tear of insertion and removal, as well as damage caused by misuse (such as over-tightening) 35.
Applications:
1. Network Analyzer/Spectrum Analyzer: Connects the device under test (e.g., antenna, filter) with the instrument to support wide bandwidth (0-18 GHz) testing.
2. Signal Generator/Attenuator: Transmits high precision RF signals in lab or field tests.
Darkroom test: RF link construction for antenna direction map and EMC test.
3. Cable TV network: connecting 75Ω coaxial cable in trunk transmission (e.g. CATV system), supporting analog/digital signal transmission.
4. Broadcast Transmitter: RF output port for FM/UHF transmitter to withstand high power broadcast signals.
Film and television production: connecting camera wireless microphone, video transmission equipment (such as microwave transmission).
