N Female Stainless Steel 4-hole Flange RF Coaxial Connector with Brass Microstrip
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFD500G | Gender: | Female |

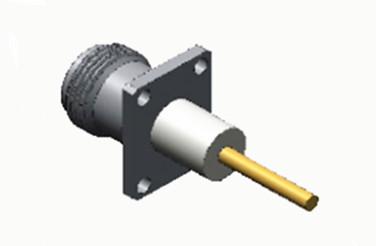

N Female Stainless Steel 4-hole Flange RF Coaxial Connector with Brass Microstrip
N-type connectors are precision-engineered, threaded coaxial interfaces renowned for their exceptional vibration resistance, optimized electrical performance, and extended frequency capabilities. While standard models typically support up to 11 GHz, our advanced configurations achieve operational bandwidths up to 18 GHz. These versatile connectors maintain signal integrity across diverse RF cable types and are widely employed in avionics, aerospace systems, radar networks, microwave telecommunications, digital data transmission, and RF instrumentation platforms. We specialize in designing tailored N-type solutions to address specific application requirements and environmental challenges.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

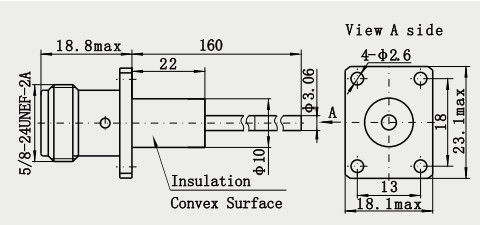

Detailed Drawing
Features:
1. Sealing and protection: the insertion surface is equipped with sealing ring (e.g. IP67 grade), with dustproof and waterproof ability, adapting to outdoor or humid environment25.
2. Weather resistance: It can work stably under extreme conditions such as high temperature, low temperature, corrosion, etc. and has a long service life23.
3.Wide range of adaptability: compatible with a variety of RF cables (such as semi-rigid cables, flexible cables), can be converted with SMA, BNC, TNC and other connectors through the adapter, suitable for microwave equipment, aerospace, radar, test instruments and other fields245.
4. High power handling: suitable for high power RF applications, such as base stations, transmitters, satellite communications, etc., with power capacity superior to small connectors (such as BNC) 36
Applications:
1. Cable Television Networks: Connects 75Ω coaxial cable in trunked transmissions (e.g. CATV systems) to support analog/digital signal transmission.
2. Broadcast Transmitter: RF output port for FM/UHF transmitter to withstand high power broadcast signals.
3. Film and television production: connecting the camera wireless microphone, video transmission equipment (such as microwave transmission).
4. Microwave equipment: Transmit high power microwave signals in microwave ovens, RF heating equipment.
5.Radar detectors: RF front-end connection for automobile collision avoidance radar, weather radar.
Particle accelerators/Nuclear Magnetic Resonance: Transmission of high-frequency control signals or RF energy in scientific research equipment.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
