N Female Flange Mounted RF Coaxial Connector with Microstrip

Large Image : N Female Flange Mounted RF Coaxial Connector with Microstrip Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	N-KFD496

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	N Type RF Coaxial Conector	Plating:	Gold Plated/ Nickel Plated
Impedance:	50Ω	Frequency Range:	DC~11GHz
Model:	N-KFD496	Gender:	Female

N Female Flange Mounted RF Coaxial Connector with Microstrip

N-type connectors are precision-engineered, threaded coaxial interfaces renowned for their robust vibration resistance, superior electrical performance, and extended frequency capabilities. While standard models typically support up to 11GHz, our advanced configurations achieve operational bandwidths up to 18GHz. These versatile connectors accommodate multiple RF cable types and are integral components in high-reliability systems across aerospace engineering, radar networks, microwave telecommunications, digital data transmission, and RF instrumentation platforms. We specialize in designing tailored N-type solutions to address specific application requirements and environmental challenges.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Gold plated
	Female	Phosphor Bronze, Gold plated
Resilient Contact	Phosphor Bronze	Nickel Plated Passivated
Shell / Housing	Brass Stainless steel	Gold plated Passivation
Cable Clamp	Brass	Nickel Plated
Insulator	PTFE
Gasket	Silicone Rubber
Durability	500 Cycles

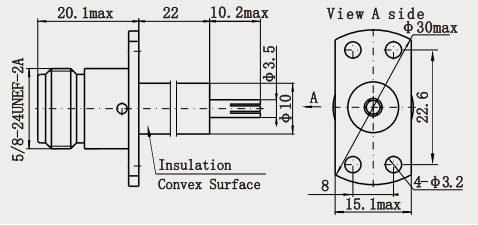

Detailed Drawing

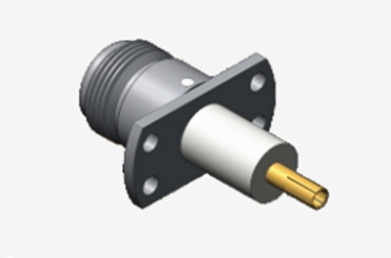

N Female Flange Mounted RF Coaxial Connector with Microstrip 0

N Female Flange Mounted RF Coaxial Connector with Microstrip 1

Features:

1. Threaded locking mechanism: medium-sized threaded connection design, solid connection through rotary locking, strong resistance to vibration and shock, suitable for harsh environments124.
2. Material and durability: The body material is mostly brass or stainless steel, and some high-performance models are gold-plated to reduce contact resistance and enhance electrical conductivity and corrosion resistance125.
3. Versatile design: Divided into male/female, standard polarity/reverse polarity, and shapes including straight, right-angle, panel type (2 holes/4 holes), flange type, etc., to meet different installation requirements134.

Applications:

1. Radar system: transceiver module for airborne radar and shipboard radar, meeting high frequency (e.g. X/Ku band) and vibration resistance requirements.
2. Satellite payload: connecting transceiver and antenna in satellite communication payload, resistant to space radiation and temperature changes.
3. Electronic warfare equipment: transmit high frequency signals in jammers and reconnaissance equipment, adapt to high power pulse scenarios.
Unmanned aircraft and aerial vehicles: RF link connection in airborne communication and navigation equipment.
