N Type Female Flange Hole Mount RF Coaxial Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz(Max.18GHz) |
| Model: | N-KFD473 | VSWR: | ≤1.3 |

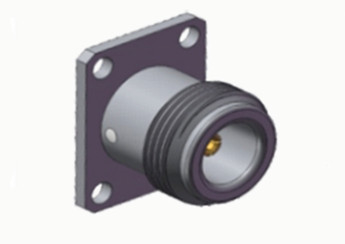

N Type Female Flange Hole Mount RF Coaxial Connector
N type connectors are coaxial connectors featuring threaded coupling, renowned for their excellent anti-vibration capabilities and electrical performance. They typically support frequencies up to 11 GHz, but our products can reach up to 18 GHz. The threaded coupling design ensures low noise and enhances shock and vibration resistance. Our N type connectors are designed to meet MIL-C-39012 specifications. These connectors are suitable for various types of RF cables and are commonly used in aviation, aerospace, radar, microwave, digital communications, and test and measurement instruments. We offer customization services for various N-type connectors and adapters to meet specific customer requirements, including straight or right-angle configurations, as well as flange mount or bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

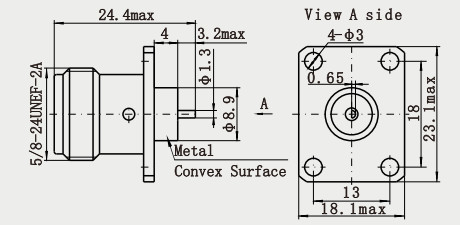

Detailed Drawing
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Features:
1. Wide bandwidth transmission: supports a wide range of signal frequencies, ranging from 0 to 11GHz, and the enhanced type can even cover up to 18GHz, which can meet the needs of a variety of RF applications.
2. High shielding: The housing is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
Applications:
1. Good environmental adaptability: After special treatment and testing, N type microstrip connectors are able to work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and have a long service life, which makes them suitable for use outdoors and in a variety of complex environments.
2. Convenient Installation and Maintenance: The threaded connection method makes the N type microstrip connector easy and quick to install, eliminating the need for complicated soldering processes. In addition, their durability and reliability reduce maintenance costs and frequency, improving the overall efficiency of the system.
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We are looking forward to receiving your inquiry at an early date .Please contact us what you need( Cable length/Connector)so we can offer you theSPEC,And the best quality and service , competitive price , timely response, delivery in time
