N Female 4-hole Flange RF Coaxial Connector with Microstrip

Large Image : N Female 4-hole Flange RF Coaxial Connector with Microstrip Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	N-KFD469

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	N Type RF Coaxial Conector	Plating:	Gold Plated/ Nickel Plated
Impedance:	50Ω	Frequency Range:	DC~11GHz
Model:	N-KFD469	Gender:	Female
Material:	Brass	Insulator:	PTFE
Durability:	500 Cycles

N Female 4-hole Flange RF Coaxial Connector with Microstrip

N type connectors are coaxial connectors with threaded coupling, known for their excellent anti-vibration capabilities and electrical performance. They support frequencies up to 18GHz and are compatible with various types of RF cables. These connectors are widely used in applications such as aviation, aerospace, radar, microwave and digital communications, and test and measurement instruments. We offer customization services for type-n connectors to meet the specific requirements of our customers.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Gold plated
	Female	Phosphor Bronze, Gold plated
Resilient Contact	Phosphor Bronze	Nickel Plated Passivated
Shell / Housing	Brass Stainless steel	Gold plated Passivation
Cable Clamp	Brass	Nickel Plated
Insulator	PTFE
Gasket	Silicone Rubber
Durability	500 Cycles

Detailed Drawing

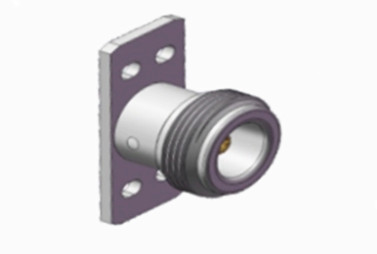

N Female 4-hole Flange RF Coaxial Connector with Microstrip 0

Outline Drawing:

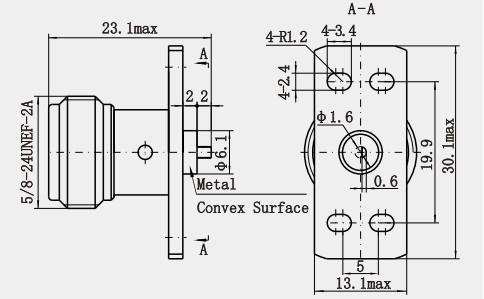

N Female 4-hole Flange RF Coaxial Connector with Microstrip 1

Features:

1. Low Loss: Adopting high quality materials and precise manufacturing process, the loss generated during signal transmission is extremely low, which helps to improve the efficiency and quality of signal transmission.

2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.

Applications:

1. High-performance electrical characteristics: N-type microstrip connectors feature low loss and high shielding effectiveness to ensure signal integrity and accuracy during transmission. This allows it to excel in high-frequency applications, such as wireless communications, satellite communications and other fields.

2. Wide frequency range adaptability: N-type microstrip connectors support wide bandwidth transmission from low to high frequencies, and some of the enhanced types of N-type connectors can even reach 18GHz or higher frequency range to meet the needs of different application scenarios.

3. Reliable Mechanical Connection: With the threaded connection, N type microstrip connectors can maintain a stable connection under vibration and shock environments, which reduces the risk of loosening connection or signal interruption caused by environmental factors.
