TNC Hermetic Female Right Angle 4-Hole Flange RF Connector for Microstrip Applications

Large Image : TNC Hermetic Female Right Angle 4-Hole Flange RF Connector for Microstrip Applications Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	TNC(M)-KWFD13

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	TNC Conector	Plating:	Nickel Plated
Impedance:	50Ω	Durability:	500 Cycles
Material:	Brass	Contact Material:	Brass, BeCu
Design Standard::	IEC 60169-17	Type:	Right Angle
Highlight:	TNC Hermetic RF Connector , 4-Hole Flange RF Connector , Microstrip Applications RF Connector

TNC Hermetic Female Right Angle 4-Hole Flange RF Connector for Microstrip Applications

The TNC series product is a threaded iteration of the BNC connector, distinguished by its screw threads for secure mating. These compact, waterproof units feature a constant 50-ohm impedance and operate within the DC-11 GHz frequency range. There are two variants of TNC connectors: standard and reverse polarity. Although these low-cost connectors are typically constructed from die-cast and molded components, their performance does not rival that of industrial or military-grade products. However, they are highly suitable for various commercial applications. Widely employed in antenna connections, TNC connectors find extensive use in avionics, defense, communications, and general industrial markets. Reverse polarity and 75-ohm versions of the TNC connector are also available.

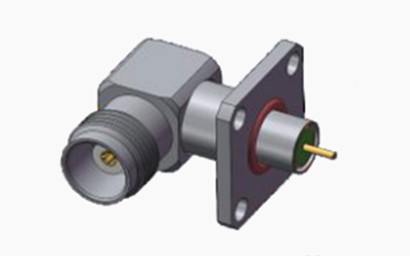

TNC Hermetic Female Right Angle 4-Hole Flange RF Connector for Microstrip Applications 0

Specification:
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Un-Coupling Force	13.6N max
Mating Force	13.6N max

Environmental Specification:

Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64

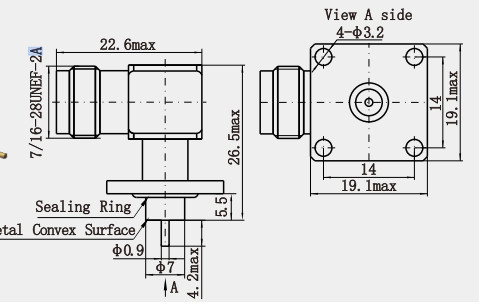

Outline Drawing:

TNC Hermetic Female Right Angle 4-Hole Flange RF Connector for Microstrip Applications 1
Features:

1. Connector Type:

TNC type connector for radio frequency (RF) applications.
2. Interface Type:

Hermetic Female (sealed female interface), provides good protection.
3. Angle Design:

Right Angle design for easy installation in equipment where space is limited.
4. Mounting Style:

4-hole Flange for solid mechanical mounting.
5. Transmission Line Type:

Microstrip for high frequency signal transmission.

Application:
Wireless Communication Equipment
Radar Systems
Microwave Equipment
Test and Measurement Equipment
Aerospace Applications

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
