Durable TNC Female 4-Hole Flange RF Connector For Reliable Connections
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | TNC Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Material: | 50Ω | Durability: | 500Cyles |
| Contact Material: | Brass, BeCu | Design Standard:: | IEC 60169-17 |
| Type: | RA | ||
| Highlight: | Reliable Connections RF Connector,4-Hole Flange RF Connector,Durable TNC Female RF Connector |
||
Durable TNC Female 4-Hole Flange RF Connector for Reliable Connections
The TNC series product is essentially a threaded variant of the BNC connector, featuring screw threads for seamless mating. These compact, threaded units are waterproof and maintain a consistent 50-ohm impedance, functioning within the DC-11 GHz range. There are two types of TNC connectors available: standard and reverse polarity. Despite being made from die-cast and molded components, these affordable connectors do not match the performance of industrial or military-grade products but are ideal for a wide range of commercial applications.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~4GHz
|
|||
|
Rated Voltage
|
2500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤6mΩ
|
||
|
Center conductor
|
≤1.5mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |

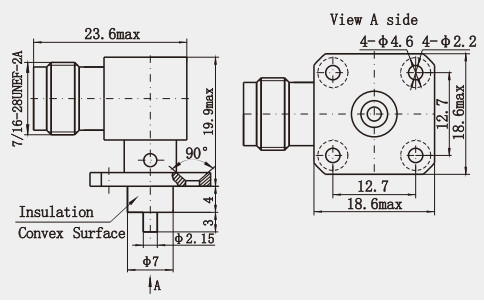

Outline Drawing:
Features:
1. Connector Type

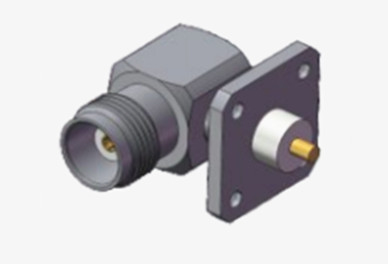

TNC Female Right Angle 4-hole Flange RF Connector
For Microstrip Interface
2. Physical Characteristics
Right angle design saves space for compact applications
4-hole flange mount provides a robust mechanical connection
Lightweight and portable for mobile devices and fixed installations
3. Performance features
Low loss, high return loss to ensure signal transmission quality
Wide frequency range to support multiple communication standards
Durable design for harsh environments
4. Interface and Compatibility
Microstrip interface for high frequency signal transmission
Compatible with a wide range of RF and microwave devices
Application:
Wireless Communication Equipment
Antenna Systems
Measurement and Test Equipment
Industrial automation equipment
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
