Product Details:
Payment & Shipping Terms:
|
| Product Name: | TNC Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Material: | Brass | Contact Material: | Brass, BeCu |
| Design Standard:: | IEC 60169-17 | Type: | RA |
| Highlight: | High Performance Microstrip RF Connector,Right Angle Design Microstrip RF Connector,TNC Female Microstrip RF Connector |
||

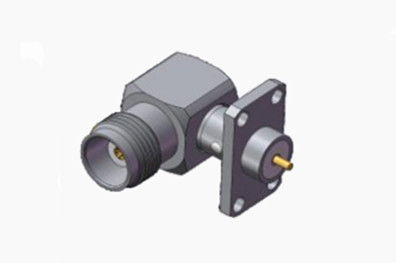

High-Performance TNC Female Microstrip RF Connector with Right Angle Design
The TNC series product is a threaded variant of the BNC connector, distinguished by its screw-thread mechanism for secure mating. These miniature, waterproof units maintain a consistent 50-ohm impedance and operate within the DC-11 GHz frequency range. There are two variants of TNC connectors: standard and reverse polarity. Although these cost-effective connectors typically employ die-cast and molded components and do not match the performance of industrial or military-grade products, they are highly suitable for a wide array of commercial applications. TNC connectors are frequently used for antenna connections and have diverse applications in avionics, defense, communications, and general industrial sectors. Reverse polarity and 75-ohm versions of the TNC connector are also available.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~4GHz
|
|||
|
Rated Voltage
|
2500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤6mΩ
|
||
|
Center conductor
|
≤1.5mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Un-Coupling Force | 13.6N max |
| Mating Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1. Wide operating bandwidth:
TNC connectors are capable of withstanding frequencies up to 11GHz and can even be applied up to higher GHz in some precision designs, making them excellent for high frequency applications.
2. Reliable connection:
TNC connectors use a threaded connection, by rotating the connector shell to realize the connection between the cable and the device, this connection is usually more robust than the snap type connection, so the TNC connector can work in a more harsh environment and not easy to loosen, to ensure the stability of the signal transmission.
Application:
1. Wireless communication system:
In wireless communication base stations, TNC connectors are used to connect RF coaxial cables and base station equipment to ensure efficient signal transmission. Its stable threaded connection and wide bandwidth performance enable it to maintain excellent performance in complex communication environments.
In antenna systems, TNC connectors are used as the connection interface between the antenna and the RF equipment to ensure that the signals received and transmitted by the antenna can be accurately transmitted to the RF equipment.
2. Agricultural industry:
TNC connector cable assemblies and their organization and protection features ensure the proper functioning of heavy machinery, such as tractors and mid-tillers, and play an important role in the agricultural sector.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
