TNC Straight Male to Female RF Coaxial Connector Adapter for Seamless Connection
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | TNC RF Connector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Design Standard: | IEC 60169-17 |
| Contact Material: | Brass, BeCu | Durability: | 500 Cycles |
| Type: | Straight | Application: | RF |
| Gender: | Male To Female | ||
| Highlight: | Seamless Connection RF Coaxial Adapter,Female RF Coaxial Adapter,TNC RF Coaxial Adapter |
||

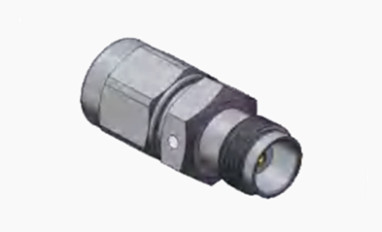

TNC Straight Male to Female RF Coaxial Connector Adapter
The TNC series represents a threaded evolution of the BNC connector, designed with screw threads for secure mating. These miniature, threaded, waterproof RF connectors maintain a consistent 50-ohm impedance and function within the DC to 11GHz frequency range. They come in two variants: standard and reverse polarity, making use of die-cast and molded materials for affordability. While they may not offer the same performance as industrial or premium grade options, they are well-suited for diverse commercial uses. Commonly employed in antenna connections, TNC connectors also serve vital roles in avionics, defense, communications, and various industrial sectors. Additionally, 75-ohm and reverse polarity versions further enhance their adaptability.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~4GHz
|
|||
|
Rated Voltage
|
2500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤6mΩ
|
||
|
Center conductor
|
≤1.5mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |

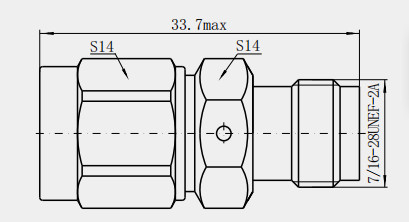

Detailed Drawing of TNC Straight Male to Female RF Coaxial Connector Adapter
Unit:(mm)
Features:
1. Reliable threaded connection: Adopting threaded connection, this kind of connection is usually more robust than snap type connection, which can work under higher frequency and keep stable connection under high vibration environment.
2. Anti-loosening design: The threaded connector has a self-locking function, which can effectively prevent the connector from loosening, improve the reliability of the connection, and ensure long-term stable use.
3. Good waterproof performance: the connector part adopts sealed structure, which has good waterproof performance and is suitable for outdoor or humid environment.
4. Corrosion-resistant and dust-proof: with corrosion-resistant, durable and dust-proof performance, it can work stably under harsh environmental conditions and prolong its service life.
Application:
Industrial control field
1. Automation control system: In some industrial automation control system, such as robot control, production line automation control, etc., it may involve the transmission and control of RF signals.TNC adapter can be used to connect the RF signal line between the controller and the sensors, actuators and other equipment to realize remote control and data transmission. Its compact structure is designed to be easy to install and use in industrial equipment, and at the same time, it can adapt to the high temperature, high humidity, electromagnetic interference and other harsh conditions in the industrial environment.
2. Instrumentation: Many industrial instruments, such as oscilloscopes, signal collectors, etc., need to be connected to external RF signal sources or devices under test, and TNC adapters can provide these instruments with reliable signal connection interfaces to ensure accurate transmission of measurement signals, which helps to improve the accuracy of monitoring and control of industrial production processes.
NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
