N Female Nickel Plated 4-hole Flange RF Coaxial Connector with Microstrip
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFD480 | Gender: | Female |
| Highlight: | 4-hole Flange RF Coaxial Connector,N Female RF Coaxial Connector,Microstrip RF Coaxial Connector |
||

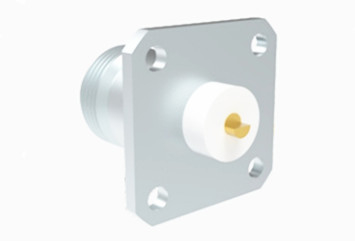

N Female Nickel Plated 4-hole Flange RF Coaxial Connector with Microstrip
N type connectors are a type of threaded coupling coaxial connectors that exhibit excellent anti-vibration capability and electrical characteristics. They are capable of handling frequencies up to 18 GHz and are suitable for various RF cables. These connectors are widely used in applications such as aviation, aerospace, radar, microwave and digital communications, test and measurement instruments, and more.
We offer customization services for N type connectors to meet the specific requirements of our customers.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

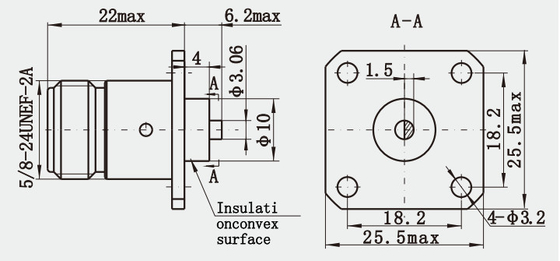

Detailed Drawing
Features:
1. Strong durability: After special treatment and testing, it can work stably in harsh environmental conditions, such as high temperature, low temperature, humidity and other environments, and has a long service life.
2. High Power Resistance: High power handling capability, able to withstand high power RF signals, suitable for transmitters, amplifiers and other applications that need to handle high power signals.
3. Compatibility: Compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which has wider applicability in practical applications.
Applications:
1. Aircraft communication system: In the communication, navigation, radar and other systems on the aircraft, N-type connectors are used to connect all kinds of electronic equipment and antennas, such as VHF communication systems, air traffic control radar transponders, meteorological radars, etc., to ensure that the aircraft in the process of flight with the ground and the stability of the communication between other aircraft and the transmission of data.
2. Satellite communication system: In the payload of the satellite, it is used to connect the communication equipment, sensors, power supply system, etc. on the satellite to realize the signal transmission and data exchange between the satellite and the ground station, and its high reliability and durability can be adapted to the harsh conditions of the space environment.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
