High Performance N Type Female RF Coaxial Connector for Communication
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFD383 | Gender: | Female |
| Highlight: | N Type Female RF Coaxial Connector,High Performance RF Coaxial Connector,Communication RF Coaxial Connector |
||

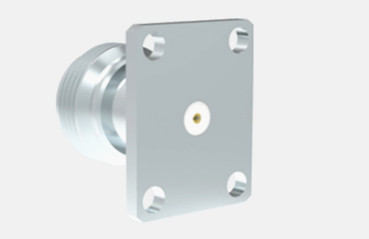

High Performance N Type Female RF Coaxial Connector for Communication
N-type connectors are threaded coaxial connectors renowned for their robust anti-vibration capabilities and superior electrical characteristics, typically supporting frequencies up to 11 GHz. Our advanced N-type connectors extend this range to 18 GHz. These connectors are versatile and compatible with various RF cable types, making them widely used in industries such as aviation, aerospace, radar systems, microwave communications, digital communications, and test and measurement equipment. We offer customization options for different types of N-type connectors and adapters to meet specific customer requirements, whether you need straight or right-angle configurations, flange mount or bulkhead mount.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Gasket | Silicone Rubber | |
| Insulator | PTFE | |
| Durability | 500 Cycles | |

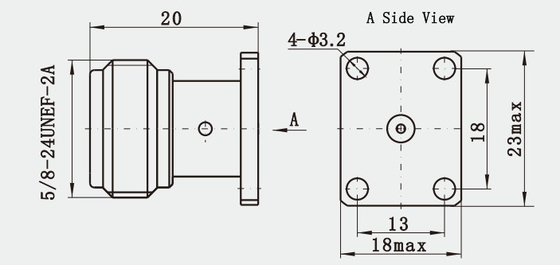

Detailed Drawing
Features:
1. Voltage Standing Wave Ratio (VSWR): This is one of the important indexes to measure the superiority of connectors.
Material Characteristics
2. Outer conductor material: The outer conductor of N-type connectors is usually made of stainless steel, which is usually more durable, but also more expensive to manufacture.
3. Connection: N connectors are threaded, which provides good mechanical strength and stability.
Applications:
1. Radar system: Due to its solid structure, N connectors perform well in radar systems and can withstand large power transmission.
2. Satellite communication: N connectors are widely used in satellite communication systems, supporting high frequency band signal transmission.
3. Microwave Measuring Instruments: N connectors are commonly used in microwave measuring instruments that require high frequency stability and shielding performance.
4. Laboratory test equipment: N-type connectors are suitable for laboratory test equipment, especially in the test field that requires repeated plugging and unplugging.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| MCX/MMCX RF Connector |
| SMP/SSMP RF Connector |
| Glass-to-metal Hermetic Seals |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
