N Stainless Steel Female 4-hole Flange RF Coaxial Connector for Communication
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFD289G | Gender: | Female |
| Highlight: | 4-hole Flange RF Coaxial Connector,N Stainless Steel RF Coaxial Connector,Communication RF Coaxial Connector |
||

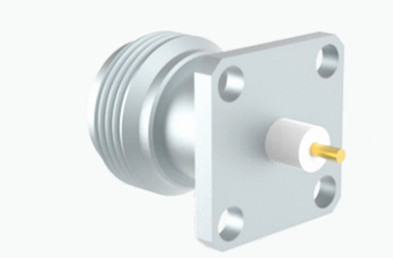

N Stainless Steel Female 4-hole Flange RF Coaxial Connector for Communication
N-type connectors are threaded coaxial connectors known for their excellent anti-vibration properties and electrical performance, with a typical frequency range of up to 11GHz. However, our N-type connectors are designed to operate efficiently up to 18GHz. These connectors are versatile and compatible with various types of RF cables, making them widely used in industries such as aviation, aerospace, radar systems, microwave communications, digital communications, and test and measurement equipment. We offer customization options for different types of N-type connectors and adapters to meet specific customer requirements.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

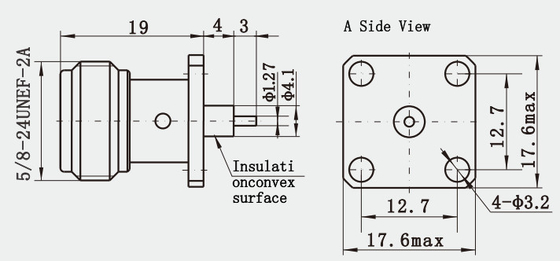

Detailed Drawing
Features:
1. Basic structure: The basic structure of N-type connector consists of three parts: inner conductor, medium and outer conductor, and also contains structural parts, seals and so on.
2. Shape design: The shape of N-type connector is divided into straight or right-angle type and 4-hole flange type, press-in type, spacer type, 2-hole panel type, 4-hole panel type or no-loading type.
Performance Indicators
3. Characteristic impedance: The characteristic impedance of N-type connectors is usually 50 ohms, which is the standard impedance widely used in the fields of mobile communications, wireless data, paging system, etc.
Applications:
1. Mobile communication base station: Due to its high reliability and excellent intermodulation performance, N-type connector is commonly used in mobile communication base stations to ensure stable signal transmission.
2. Wireless communication equipment: In wireless communication equipment, the high power carrying capacity and good RF performance of N-type connectors make them an ideal choice.
3. Broadcasting and television transmission and reception: N connectors are suitable for broadcasting and television transmission and reception systems, and can provide a stable signal connection.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
