N Female RF Coaxial Connector With Micro-strip Matched Pinφ 0.45
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Nickel Plated |
|---|---|---|---|
| VSWR: | ≤1.3 | Frequency Range: | DC~11GHz |
| Model: | N-KFD55 | Impedance: | 50Ω |
| Highlight: | N Female RF Coaxial Connector,φ0.45 RF Coaxial Connector |
||

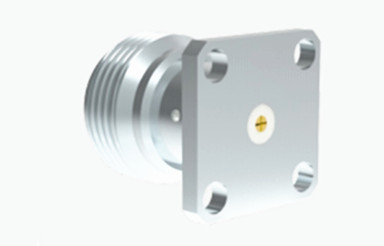

N Female RF Coaxial Connector with Micro-strip Matched Pinφ0.45
The N-series connectors are designed and manufactured in compliance with MIL-C-39012, featuring threaded connections and using air as the dielectric. They deliver outstanding electrical performance up to 11 GHz. Our precision connectors can support frequencies up to 18 GHz and are adaptable to various radio frequency cables. These connectors are celebrated for their excellent shock resistance, high reliability, and broad bandwidth, making them extensively used in industries such as aviation, aerospace, radar, microwave communication, digital telecommunications, and microwave measurement. Additionally, the N-type connector is commonly used as a test interface connector, widely incorporated into numerous testing instruments.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

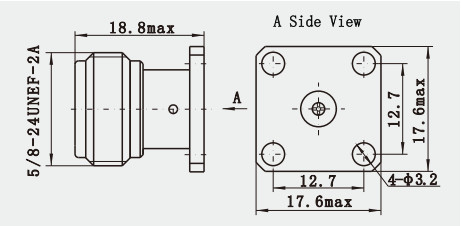

Detailed Drawing
Features
1. Low loss: using high quality materials and precision manufacturing process, N-type connectors produce very low loss in the signal transmission process, which helps to improve the efficiency and quality of signal transmission.
2. Strong durability: After special treatment and testing, N-type connectors are able to work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and have a long service life.
3. Good compatibility: N connectors are compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.
Applications
1. Medical devices: N-type connectors are also used in the field of medical devices to provide reliable connections for RF signal transmission in medical equipment. This requires connectors with a high degree of precision and reliability to ensure the proper functioning of medical equipment.
2. Aerospace: In the aerospace field, N connectors also have a wide range of applications. It can meet the needs of aerospace equipment for high-performance, high-reliability connectors to ensure the stable operation of equipment in extreme environments.
