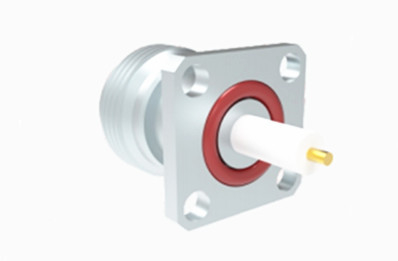

Type N Female 4-hole Flange Micro-strip RF Coaxial Connector with Durable Silicone Rubber Gasket
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Gender: | Female | Gasket: | Silicone Rubber |
| Durability: | 500 Cycles | Body Style: | Straight |
| Highlight: | 4-hole Flange RF Coaxial Connector,Micro-strip RF Coaxial Connector |
||
Type N Female 4-hole Flange Micro-strip RF Coaxial Connector
N-type connectors are coaxial connectors that utilize a threaded coupling mechanism, offering excellent resistance to vibration and superior electrical performance. They typically operate within an 11 GHz frequency range but can support frequencies up to 18 GHz. These connectors are versatile and compatible with various types of RF cables, making them widely used in industries such as aviation, aerospace, radar systems, microwave communications, digital communications, and test and measurement equipment.
We provide customization options for various N-type connectors and adapters to meet specific customer requirements. Whether you need straight or right-angle connectors, flange mount or bulkhead mount configurations, we can tailor our products to fit your needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |

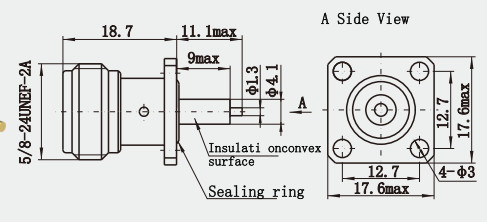

Detailed Drawing
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Features:
1. Rugged structure: N-type connectors have a rugged structural design and are suitable for harsh working environments or test areas that require repeated plugging and unplugging.
2. Threaded Connection: N-type connectors are threaded for fast and reliable connection by rotational locking. This design allows the connector to maintain a stable connection even in vibration or shock environments.
3. Good shielding: The shell of N-type connector is usually made of metal material, which has good electromagnetic shielding performance and can effectively prevent the influence of external electromagnetic interference on signal transmission.
Applications:
1. Communication equipment: N-type connectors are widely used in wireless communication equipment, such as base stations and antenna systems. Due to its solid structure, wide range of operating frequencies and low loss, N-type connectors are able to meet the demand for high-performance RF connectors in these devices.
2. Automotive electronics: In automotive electronics, N connectors also play an important role. It can provide reliable connection solutions to ensure stable and reliable signal transmission between automotive electronic devices.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| MCX/MMCX RF Connector |
| Waveguide To Coaxial Adapter |
| TNC RF Connector |
| SMP/SSMP RF Connector |
| SMA/SSMA RF Connector |
| Microwave Rotary Joints |
| N Type RF Connector |
| BNC RF Connector |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
