N Female Stainless Steel RF Coaxial Connector Clamp Mount for MF147A/MF147B Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz(Max.18GHz) |
| Model: | N-K416G | VSWR: | ≤1.3 |
| Highlight: | Clamp Mount RF Coaxial Connector,N Female RF Coaxial Connector,Stainless Steel RF Coaxial Connector |
||

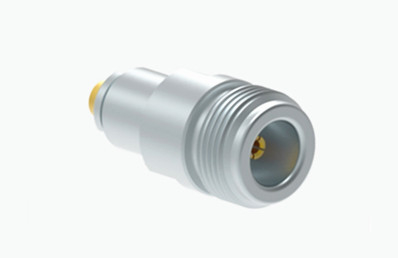

N Female Stainless Steel RF Coaxial Connector Clamp Mount for MF147A/MF147B Cable
N-type connectors are threaded coaxial connectors renowned for their robust anti-vibration capabilities and superior electrical characteristics, with a typical frequency range of up to 11 GHz. However, they can support frequencies up to 18 GHz. The threaded coupling design ensures low noise and high resistance to shock and vibration. Our LTI N connectors adhere to MIL-C-39012 standards. These connectors are compatible with various RF cables and are extensively used in industries such as aviation, aerospace, radar systems, microwave communications, digital communications, and test and measurement instruments.
We offer customization options for a variety of N-type connectors and adapters to meet diverse customer requirements. Whether you need straight or right-angle configurations, flange mount or bulkhead mount, we can tailor solutions to your specific needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

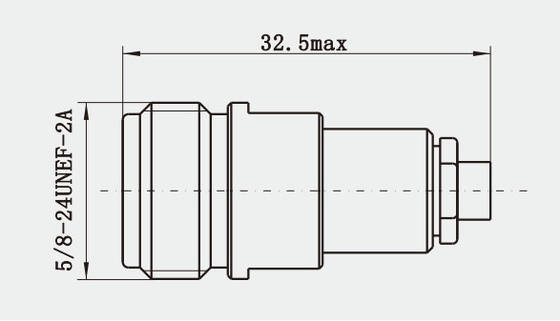

Detailed Drawing
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Features:
1. Wide bandwidth transmission: supports a wide range of signal frequencies, ranging from 0 to 11GHz, and the enhanced type can even cover up to 18GHz, meeting the needs of a variety of RF applications.
2. Low Loss: Adopting high quality materials and precise manufacturing process, the loss generated during signal transmission is extremely low, which helps to improve the efficiency and quality of signal transmission.
3. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
4. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
Applications:
1. Aerospace: The aerospace field has extremely high performance requirements for connectors, and N type splice cable RF connectors are widely used in satellite communications, radar systems, aircraft navigation and other key systems for their high reliability, high temperature resistance, vibration resistance and other characteristics.
2. Broadcasting and television equipment: In the broadcasting and television transmission system, N-type connecting cable RF connectors are used to connect transmitters, receivers, antennas and other equipment to ensure high quality transmission of broadcasting and television signals.
3. Industrial automation: In the industrial automation control system, N-type connectors can be used to connect various sensors, actuators and controllers to realize the rapid transmission of data and the accurate execution of control instructions.
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We are looking forward to receiving your inquiry at an early date .Please contact us what you need( Cable length/Connector)so we can offer you theSPEC,And the best quality and service , competitive price , timely response, delivery in time
