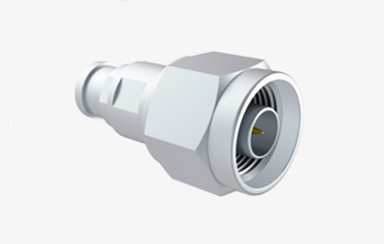

N Male RF Coaxial Connector for CXN3450/MF740A Cable Solder Type

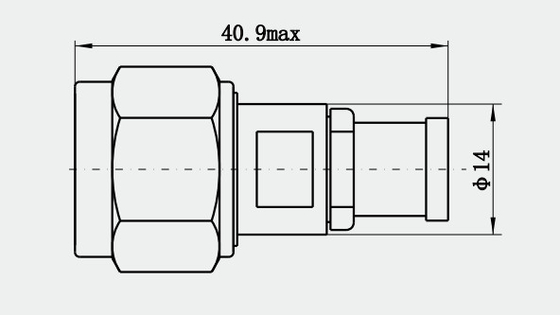

Detailed Drawing

Features:

1. Outer conductor: usually made of metal material, with good electrical conductivity and mechanical strength, not only as a signal transmission circuit, but also play a role in fixing and protecting the internal parts.
2. Inner conductor: also made of metal material, and the outer conductor together constitute the signal transmission channel, the design needs to ensure that the signal transmission of low loss and high efficiency.
3. Insulator: located between the inner and outer conductors, used to isolate the two, to prevent signal short-circuit, the material is usually selected dielectric constant stability, good temperature resistance.
4. Locking mechanism: the use of threaded connections, through the rotation of the lock to achieve a fast and reliable connection, this design makes the connector in the vibration or shock environment can also maintain a stable connection.

Applications:

1. Wireless communication equipment: N type splice cable RF connectors play an important role in wireless communication equipment, such as base stations, antenna systems, microwave transmission equipment and so on. Its wide-bandwidth transmission characteristics and low-loss performance to ensure stable signal transmission.

2. Automotive electronic equipment: With the improvement of automotive electronics, N-type connectors are also used in car radar, navigation systems, wireless charging and other equipment to meet the demand for high-frequency signal transmission.

3. Medical devices: In the field of medical devices, N type connecting cable RF connectors can be used for wireless monitoring of medical devices, data transmission, etc., to ensure the accuracy and real-time medical data.

Product Cataloge:

NOTE:
We have over 10,000 types of  N Type Connector, if the connector you are using is not found, please contact us with your details.
