N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount

Large Image : N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	N-J417G

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	N Type RF Coaxial Conector	Plating:	Gold Plated/ Nickel Plated
Impedance:	50Ω	Frequency Range:	DC~11GHz(Max.18GHz)
Model:	N-J417G	VSWR:	≤1.3
Highlight:	N Male RF Coaxial Connector , Stainless Steel RF Coaxial Connector , Solder Clamp Mount RF Coaxial Connector

N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount

N-type connectors feature threaded couplings, providing strong anti-vibration capabilities and excellent electrical performance, typically supporting frequencies up to 11GHz. Our advanced models extend this range to 18GHz. The threaded design minimizes noise and effectively withstands shock and vibration. Our LTI N connectors adhere to MIL-C-39012 standards. They are versatile, compatible with various RF cable types, and widely used in aviation, aerospace, radar systems, microwave communications, digital telecommunications, and test and measurement instruments.
We offer customization for various N-type connectors and adapters to meet diverse customer needs, whether you require straight or right-angle configurations, flange mount or bulkhead mount options.

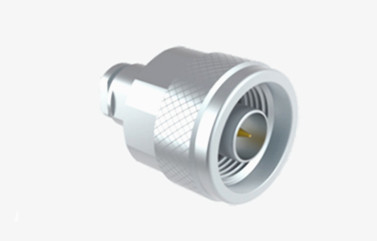

N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount 0

Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Nickel Plated
	Female	Phosphor Bronze, Nickel Plated
Resilient Contact	Phosphor Bronze	Nickel Plated
Shell / Housing	Brass Stainless steel	Nickel Plated
Cable Clamp	Brass	Nickel Plated
Insulator	PTFE
Gasket	Silicone Rubber
Durability	500 Cycles

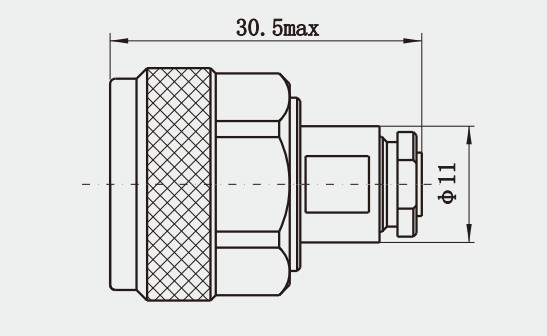

Detailed Drawing
N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount 1

Product Cataloge:

RF Adapter

RF Cable Assemblies

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Waveguide to Coaxial Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Features:
1. Interchangeability: N-type connectors can be interchanged with international NG-type similar products, which increases its versatility and flexibility.
2. Application areas: Due to its excellent performance and reliability, N-type connectors are widely used in radar, communications, data transmission and aerospace equipment.

Applications:
RF laboratory: In the RF laboratory, N connectors are used to connect various RF instruments and test equipment to support high-frequency, high-power experiments.
Antenna testing: In antenna testing, N-type connectors are used to connect antennas and test equipment to ensure the accuracy and reliability of test data.

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements

NOTE:
We are looking forward to receiving your inquiry at an early date .Please contact us what you need( Cable length/Connector)so we can offer you theSPEC,And the best quality and service , competitive price , timely response, delivery in time
