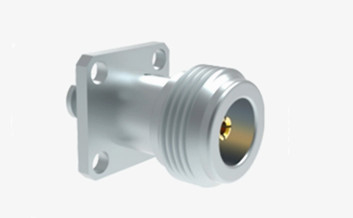

N Type Female Stainless Steel RF Connector For CXN3507/ M363A Cable

Large Image : N Type Female Stainless Steel RF Connector For CXN3507/ M363A Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	N-KF507G-2

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	N Type RF Coaxial Conector	Plating:	Gold Plated/Nickel Plated
Impedance:	50Ω	Frequency Range:	DC~11GHz
Model:	N-KF507G-2	Gender:	Female
Highlight:	N Type Female RF Connector , CXN3507 RF Connector , M363A RF Connector

N Type Female Stainless Steel RF Connector For CXN3507/ M363A Cable

The N series connectors are engineered and fabricated in accordance with MIL-C-39012 standards. Utilizing threaded connections and air as the dielectric medium, these connectors deliver superior electrical performance across frequencies reaching up to 11GHz. Our precision-engineered connectors extend this range to an impressive 18GHz and are adaptable to a broad spectrum of radio frequency cables. Renowned for their exceptional resistance to shock, high dependability, extensive frequency bandwidth, and additional benefits, they find extensive applications in sectors including aviation, aerospace, radar systems, microwave communications, digital telecommunications, and microwave measurements.
Furthermore, the N-type connector serves as a prevalent test interface connector, extensively employed within testing and measurement instrumentation.

Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Gold plated
	Female	Phosphor Bronze, Gold plated
Resilient Contact	Phosphor Bronze	Nickel Plated Passivated
Shell / Housing	Brass Stainless steel	Gold plated Passivation
Cable Clamp	Brass	Nickel Plated
Gasket	Silicone Rubber
Insulator	PTFE
Durability	500 Cycles

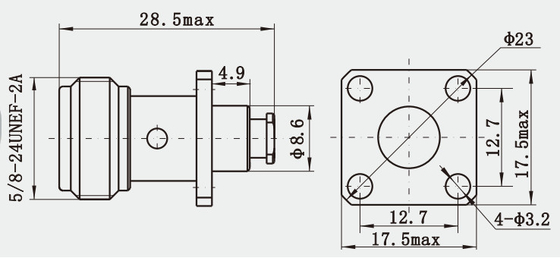

Detailed Drawing
N Type Female Stainless Steel RF Connector For CXN3507/ M363A Cable 0
Features:
1. Appearance and Structure: N-type connectors are available in straight or right-angle profiles, as well as 4-hole flange, press-in, bulkhead, 2-hole panel, 4-hole panel, or no-fit types to suit different installation and application needs. With its solid structure, it is commonly used in harsh working environments or testing areas that require repeated plugging and unplugging.
2. Termination Methods: N connectors are available in a variety of termination methods, including snap/solder, snap/solder (static contact), crimp/solder, field replaceable, soldered, or soldered/soldered, providing flexible connection options.

Applications:
1. Satellite communication: In satellite communication system, N-type connectors are used to connect the communication link between ground stations and satellites to ensure the efficiency and safety of data transmission.
2. Avionics: Avionics equipment such as navigation systems, communication systems, etc., also widely use N-type connectors to cope with the harsh working environment.
