N Series Male Solder Clamp RF Coaxial Connector For CXN3507/MF363A Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| VSWR: | ≤1.3 | Frequency Range: | DC~11GHz |
| Model: | N-J507G-1 | Impedance: | 50Ω |
| Highlight: | CXN3507/MF363A RF Coaxial Connector,N Series RF Coaxial Connector,Male Solder Clamp RF Coaxial Connector |
||

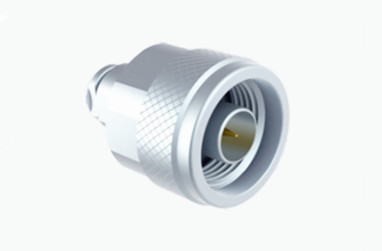

N Series Male Solder Clamp RF Coaxial Connector for CXN3507/MF363A Cable
N-type connectors are threaded coaxial connectors known for their excellent anti-vibration performance and electrical characteristics, typically supporting a frequency range up to 11GHz. Our connectors extend this range up to 18GHz. They are compatible with various types of RF cables and are widely used in aviation, radar, microwave, digital communications, and test and measurement instruments.
We also offer customization options for different N-type connectors and adapters to meet specific customer requirements. Whether you need straight or right-angle configurations, flange mount or bulkhead mount, we can accommodate your needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Features
1. N-type connectors are available in a variety of termination styles, including snap/solder, snap/solder (static contact), crimp/solder, field replaceable, soldered, or soldered/soldered.
2. Application Scenarios:
The N-type connector is suitable for a variety of coaxial cables, including low-loss types.
It excels where high power and high performance are required and is better suited for use with larger low-loss cables.
It is widely used in radar, communications, data transmission and aerospace equipment.

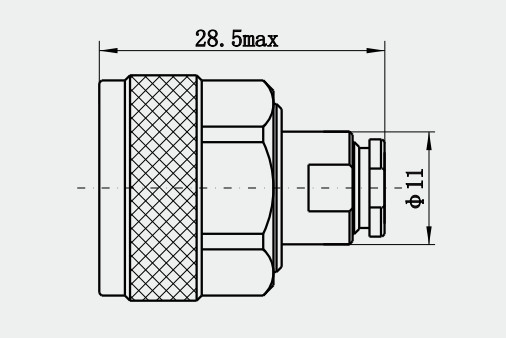

Detailed Drawing
Applications
1. Industrial equipment: In industrial automation and control systems, N connectors are used to connect sensors, controllers and other equipment to ensure the accuracy and stability of signal transmission.
2. Marine environment: Marine environment resistant N connectors are designed for marine exploration equipment and underwater communication systems, with waterproof structure and corrosion-resistant materials.
3. Test and Measurement Instruments: N-type connectors are used in laboratories and test environments to connect test equipment and support repeated plugging and unplugging to ensure the reliability of the test process.
4. Broadcast TV: In broadcast TV transmission systems, N connectors are used to connect transmitters, receivers and antennas to support high quality video and audio signal transmission.
Product Cataloge
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
