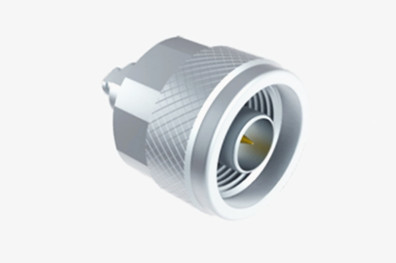

N Type Solder Clamp RF Coaxial Connector for CXN3506 / MF108A Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Nickel Plated |
|---|---|---|---|
| VSWR: | ≤1.3 | Frequency Range: | DC~11GHz |
| Model: | N-J506G | Impedance: | 50Ω |
| Highlight: | N Type RF Coaxial Connector,MF108A RF Coaxial Connector,CXN3506 RF Coaxial Connector |
||
N Type Solder Clamp RF Coaxial Connector for CXN3506/MF108A Cable
The N series of connectors are meticulously designed and manufactured to meet the specifications of MIL-C-39012, employing threaded connections and utilizing air as the dielectric medium. This design ensures exceptional electrical performance up to a frequency of 11GHz. Our company's precision connectors are capable of supporting frequencies up to 18GHz and are compatible with a wide variety of radio frequency cables. These connectors are highly regarded for their outstanding shock resistance, reliability, and broad bandwidth capabilities. Consequently, they find extensive applications in industries such as aviation, aerospace, radar, microwave communication, digital telecommunications, and microwave measurement. Additionally, the N-type connector is commonly used as a test interface connector and is widely incorporated into various testing instruments.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

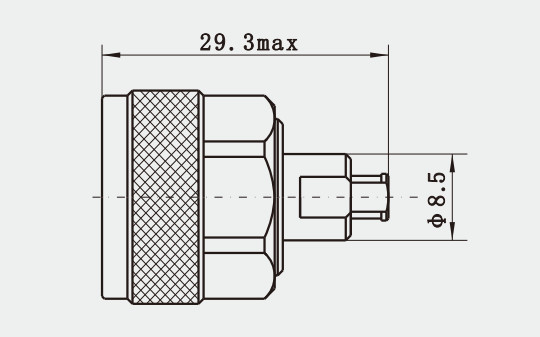

Detailed Drawing
Features
1. Material & Durability:
The body material of N-type connectors can be brass or stainless steel. N-type connectors made of stainless steel are usually more durable and cost more to manufacture.
2. Construction & Type:
N-type connectors are ruggedly constructed and are often used in harsh working environments or in testing areas where repeated plugging and unplugging is required.
It is categorized as male or female, and styles are available in standard or reverse polarity.
The shape is categorized into straight or right-angle type as well as 4-hole flange type, press-in type, bulkhead type, 2-hole panel type, 4-hole panel type, or no-load type and many other types.
Applications
1. Communication Equipment: N-type connectors are employed in various communication devices, including microwave equipment and digital communication systems. They facilitate the connection of RF cables or microstrip lines within RF circuits.
2. Test Instrumentation: Due to their excellent shielding performance, N-type connectors are frequently used in test and measurement equipment to ensure accurate signal transmission and prevent electromagnetic interference.
3. Aerospace: N-type connectors are extensively used in military communications, aerospace, and ground launch systems due to their high reliability and robust resistance to vibrations.
4. Wireless Devices: In special applications requiring high levels of protection, such as extreme temperatures, pressures, or vibration environments, N-type connectors are an ideal choice.
5. Antennas and Radar Systems: N-type connectors are also commonly found in antenna and radar systems to ensure stable signal transmission and high-quality communication links.
6. Medical Devices: In some high-precision medical devices, N-type connectors may also be used to connect sensors and transmit signals, particularly in applications requiring miniaturized connectors.
Product Cataloge
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
