50Ω Impedance N Female Solder Clamp 4-hole Flange RF Coaxial Connector For 3 Semi-rigid / Flexible Cable Female Gender
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFB3 | Gender: | Female |
| Highlight: | 4-hole Flange RF Coaxial Connector,50Ω Impedance N Female Solder Clamp,3 flexible Cable Female Gender |
||

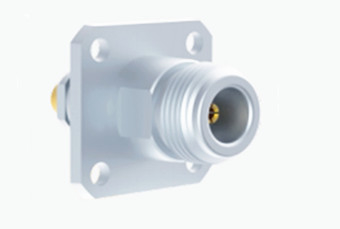

N Female Solder Clamp 4-hole Flange RF Coaxial Connector for 3#Semi-rigid/flexible Cable
N-type connectors are threaded coaxial couplings known for their strong anti-vibration capabilities and excellent electrical performance, with a typical frequency range of up to 11 GHz. However, our specialized versions can support frequencies up to 18 GHz. These connectors are versatile and compatible with various types of RF cables, making them widely used in aviation, aerospace, radar systems, microwave communications, digital transmissions, and test and measurement instruments.
We offer customization services for a variety of N-type connectors and adapters to meet specific customer requirements.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

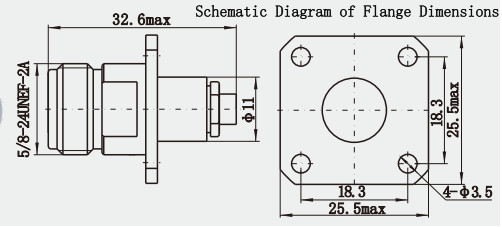

Detailed Drawing
Features:
1.Outer conductor: usually made of metal material, with good electrical conductivity and mechanical strength, not only as a signal transmission circuit, but also play a role in fixing and protecting the internal parts.
2.Inner conductor: also made of metal material, and the outer conductor together constitute the signal transmission channel, the design needs to ensure that the signal transmission of low loss and high efficiency.
3.Insulator: located between the inner and outer conductors, used to isolate the two, to prevent signal short-circuit, the material is usually selected dielectric constant stability, good temperature resistance.
4.Locking mechanism: the use of threaded connections, through the rotation of the lock to achieve a fast and reliable connection, this design makes the connector in the vibration or shock environment can also maintain a stable connection.
Applications:
1.Wireless communication equipment: N type RF coaxial connectors play an important role in wireless communication equipment for connecting and transmitting RF signals. Due to its wide bandwidth transmission, low loss, high shielding and durability, it can meet the high requirements of wireless communication equipment for signal transmission quality.
2.Aerospace: In the aerospace field, N-type RF coaxial connectors also play a key role. It can withstand harsh environmental conditions, such as high temperature, low temperature, humidity, etc., and maintain a stable working condition to ensure the reliability of signal transmission.
3.Radar system: Since N type RF coaxial connectors support signal frequency range up to 18GHz, they are also widely used in radar system. It can meet the demand of radar system for high-frequency signal transmission.
4.Test Instruments: N type RF coaxial connectors are also an indispensable part of test instruments. Its multiple connection methods and good compatibility make it able to meet the needs of different testing scenarios.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
