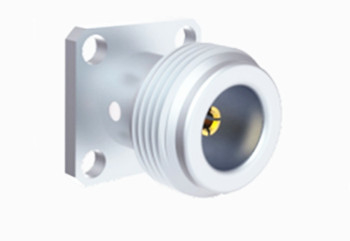

Stainless Steel Solder Clamp N Female Coaxial Connector for 2 Semi-rigid / flexible Cable Frequency Range DC-11GHz N-KFB2G-15
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFB2G-15 | Gender: | Female |
| Highlight: | Semi-rigid N Female Coaxial Connector,DC-11GHz N Female Coaxial Connector,Stainless Steel N Female Coaxial Connector |
||
N Female Stainless Steel Solder Clamp RF Coaxial Connector for 2#Semi-rigid/flexible Cable
N-type connectors are threaded coaxial couplings renowned for their robust anti-vibration properties and excellent electrical characteristics. Our models can operate effectively up to 18 GHz. These connectors are versatile, compatible with various types of RF cables, and extensively used in aviation, aerospace, radar systems, microwave communications, digital transmissions, and test and measurement instruments.
We offer customization services for a wide range of N-type connectors to meet specific customer requirements.
We provide customization services for a variety of N-type connectors and adapters to meet specific customer requirements. Whether you need straight or right-angle configurations, flange mount or bulkhead mount options, we can tailor our products to fit your unique needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

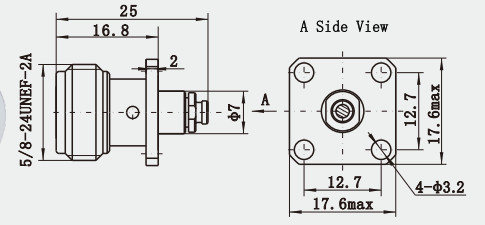

Detailed Drawing
Features:
1. Termination Method
Snap / Solder.
Crimp/solder.
Field replaceable type.
Welded or soldered/soldered.
2. Shape Classification
Straight type or right angle type.
4-hole flange type, press-in type, bulkhead type, 2-hole panel type, 4-hole panel type or no-fit type.
Applications:
1. Aerospace: In the aerospace field, N-type RF coaxial connectors also play a key role. It can withstand harsh environmental conditions, such as high temperature, low temperature, humidity, etc., and maintain a stable working condition to ensure the reliability of signal transmission.
2. Radar system: Since N type RF coaxial connectors support signal frequency range up to 18GHz, they are also widely used in radar system. It can meet the demand of radar system for high-frequency signal transmission.
3. Test Instruments: N type RF coaxial connectors are also an indispensable part of test instruments. Its multiple connection methods and good compatibility make it able to meet the needs of different testing scenarios.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
Contact Details
Xi'an Elite Electronic Industry Co., Ltd.
Contact Person: Elite
Tel: +8613609167652
Send your inquiry directly to us
