N-JB3G-2 Frequency Range DC-11GHz Stainless Steel Solder Clamp RF Coaxial Connector For 3 Semi-flexible Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/Nickel Plated |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~11GHz |
| Model: | N-JB3G-2 | Impedance: | 50Ω |
| Highlight: | Stainless Steel RF Coaxial Connector,DC-11GHz RF Coaxial Connector |
||

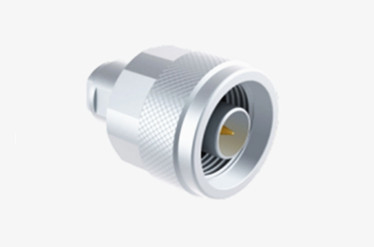

N Male Stainless Steel Solder Clamp RF Coaxial Connector for 3#Semi-flexible Cable
N-type connectors are threaded coaxial connectors known for their robust anti-vibration properties and excellent electrical characteristics, typically operating within an 11 GHz frequency range. However, our advanced models can support frequencies up to 18 GHz. These connectors are versatile and compatible with various RF cable types, making them widely used in industries such as aviation, aerospace, radar systems, microwave communication, digital communications, and test and measurement instruments.
We provide customization services for a variety of N-type connectors and adapters to meet specific customer requirements. Whether you need straight or right-angle configurations, flange mount or bulkhead mount options, we can tailor our products to fit your unique needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass, Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

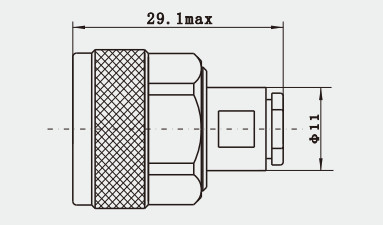

Detailed Drawing
Features:
1. Wide bandwidth transmission: supports a wide range of signal frequencies, ranging from 0 to 11GHz.
2. Low Loss: Adopting high quality materials and precise manufacturing process, the loss generated during signal transmission is extremely low, which helps to improve the efficiency and quality of signal transmission.
3. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
4. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.
5. Easy to operate: the use of threaded connection makes the connectors easy and quick to connect and disassemble. In addition, the mating surface has a sealing ring, which can be waterproof , and is suitable for a variety of outdoor environments.
Good compatibility: Compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.
Applications:
1. Wireless communication equipment: N type RF coaxial connectors play an important role in wireless communication equipment for connecting and transmitting RF signals. Due to its wide bandwidth transmission, low loss, high shielding and durability, it can meet the high requirements of wireless communication equipment for signal transmission quality.
2.Aerospace: In the aerospace field, N-type RF coaxial connectors also play a key role. It can withstand harsh environmental conditions, such as high temperature, low temperature, humidity, etc., and maintain a stable working condition to ensure the reliability of signal transmission.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
