High Performance N Male Flange Mount Micro Strip RF Coaxial Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Gender: | Male |
| Model: | N-JFD95 | Frequency Range: | DC~11GHz |
| Highlight: | High Performance RF Coaxial Connector,Micro Strip RF Coaxial Connector |
||

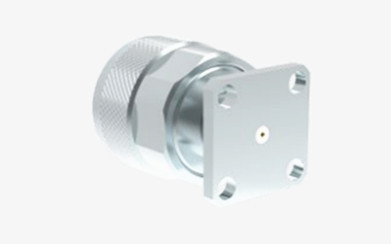

High Performance N Male Flange Mount Micro Strip RF Coaxial Connector
N-type connectors are threaded coaxial connectors designed for optimal anti-vibration performance and superior electrical characteristics, with a typical frequency range of up to 11 GHz. Our high-performance N-type connectors extend this range to 18 GHz. They are compatible with various types of RF cables and are widely used in industries such as aviation, aerospace, radar systems, microwave and digital communications, as well as in test and measurement instruments.
We offer customization options for different types of N-type connectors and adapters to meet specific customer requirements. Whether you need straight or right-angle configurations, flange mount or bulkhead mount options, we can tailor our products to your exact specifications.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤2.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

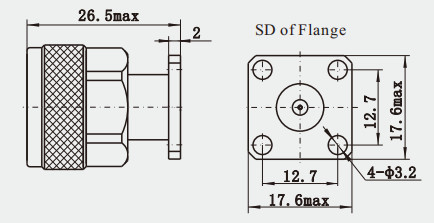

Detailed Drawing
Features:
1. Mechanical strength: N-type connector is made of metal material with good electrical conductivity and mechanical strength. It not only serves as a circuit for signal transmission, but also plays the role of fixing and protecting internal parts. In addition, its compact design and excellent performance provide a reliable connection solution for the transmission of various RF signals.
2. Application areas: N connectors are widely used in aviation, aerospace, radar, microwave communications, digital communications, medical equipment and other fields. Due to its excellent electrical performance and mechanical strength, it is particularly suitable for areas requiring high power carrying capacity, good RF performance and working with larger size coaxial cables.
3. Compatibility: N connectors are compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.
