N Male 4-hole Flange RF Coaxial Connector with Insulation Convex Surface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Gender: | Male |
| Model: | N-JFD94 | Frequency Range: | DC~11GHz |
| Highlight: | 4-hole Flange RF Coaxial Connector,N Male RF Coaxial Connector,Insulation Convex Surface RF Coaxial Connector |
||

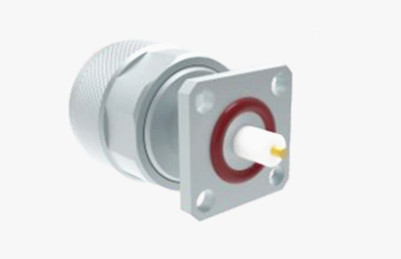

N Male 4-hole Flange RF Coaxial Connector with Insulation Convex Surface
The N series connector adheres to the MIL-C-39012 standard, featuring a threaded connection design and utilizing air as its medium. This connector boasts exceptional electrical performance, supporting frequencies up to 11GHz. Elite Electronic's precision N-type connectors extend this range even further to 18GHz and are compatible with various RF cable types. Owing to their excellent seismic resistance, high reliability, and broad frequency bandwidth, these connectors find extensive applications in sectors such as aviation, aerospace, radar systems, microwave communications, digital telecommunications, microwave measurements, and more. Additionally, the N series connector serves as a widely adopted testing interface in measurement instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤2.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

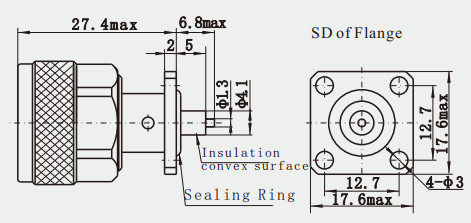

Detailed Drawing
Features:
1. Structural design: The N-type connector utilizes a threaded connection that rotates and locks for a fast and reliable connection. This design allows the connector to maintain a stable connection even in vibration or shock environments. The structure is usually divided into male or female, and the style has standard polarity or reverse polarity.
2. Frequency Range: N connectors support a wide range of signal frequencies, from 0 to 11 GHz, and enhanced types can even cover up to 18 GHz, which makes it able to meet the needs of a variety of RF applications.
3. ELECTRICAL PERFORMANCE: N-type connector has good electrical performance, including low loss and high shielding. It is made of high-quality materials and precision manufacturing process, which produces very low loss during signal transmission, helping to improve the efficiency and quality of signal transmission. Meanwhile, its shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
Translated with DeepL.com (free version)
