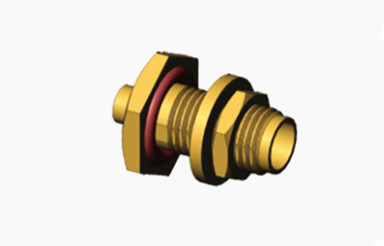

K2.92 Female Bulkhead RF Connector for 2 Semi-rigid / flexible Cable 50Ohm Impendence

   K2.92 Female Bulkhead RF Brass Coaxial Connector for 2#Semi-rigid/flexible Cable

Frequently referred to as the "K type," 2.92 connectors are integral to millimeter wave technology, capable of accommodating frequencies of up to 40 GHz. These adapters not only allow for interchangeability with SMA and 3.5mm series equivalents but also employ an air dielectric system. They stand out due to their compact design, low weight, enhanced performance at high frequencies, and ensure reliable connectivity.

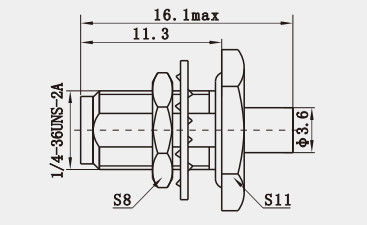

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.


Features:

1. Compatibility and Interchangeability
Good Compatibility: The design of K-type connectors carefully considers compatibility with SMA and 3.5mm connectors, aligning inner and outer conductor dimensions to ease transition between different systems.
Interchangeability: Although K-type connectors are interchangeable with SMA and 3.5mm connectors, users should be aware of performance impacts when interconnecting different types of connectors.
2. Material and Craftsmanship
Brass Construction: Made primarily of brass, the K2.92 brass waterproof RF coaxial connectors benefit from the material's excellent mechanical properties and corrosion resistance, ensuring stable operation in harsh environments.
Precision Manufacturing: The precise manufacturing process of K-type connectors guarantees reliable connections and long-term stability, especially in high-frequency signal transmission and demanding conditions.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Application:

1. Satellite Communications
High-performance connectivity: In the field of satellite communications, K2.92 connectors play a key role in transmitting signals from ground equipment to satellites without loss, ensuring high-fidelity signal transmission due to their excellent electrical performance.
Withstanding extreme environments: For satellite equipment operating in extreme extra-atmospheric conditions, the materials and design of K2.92 connectors ensure stable performance under conditions of radiation and extreme temperature variations.
2. Test and Measurement Equipment
Precise measurement: In testing high-frequency circuits and components, K2.92 connectors ensure signal integrity between the measuring device and the device under test, increasing the accuracy of tests.
Strong compatibility: The design of K2.92 connectors is compatible with SMA and 3.5mm series connectors, allowing use with various testing equipment and significantly expanding their application range in the field of test and measurement.
