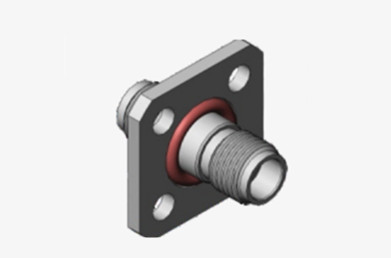

2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | 2.4mm RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ISO-9001-2015 | Gender: | Female |
| Lifespan: | 500Cycles | Application: | Computer/LANs |
| Material: | Stainless Steel | Plating: | Passivated |
| Highlight: | 2.4mm RF Adapter Connector,Stainless Steel RF Adapter Connector,Female to Female RF Adapter Connector |
||
2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector
The precision 50Ohm coaxial 2.4mm connectors are designed for general-purpose RF and microwave applications. These high-performance connectors are utilized in various test and measurement environments, from cellular to satellite communications, ensuring proper equipment and cable interconnect matching. Made from durable stainless steel, these connectors are built to endure repeated use. They also feature an air dielectric with a low-loss plastic center conductor support.
Specification :
Electrical Characteristics | ||||
Impedance | 50Ω | |||
Frequency Range | DC～50GHz | |||
Rated Voltage | 170VRMS (Maximum sea-level) | |||
Dielectrics Voltage-resistance | 500VRMS (Maximum sea-level) | |||
Insulation Resistance | ≥5000MΩ | |||
Contact Resistance | Outer conductor | ≤2mΩ | ||
Center conductor | ≤3mΩ | |||
VSMR | ≤1.05+0.005f | |||

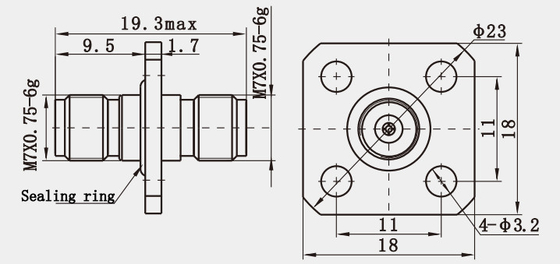

Detailed Drawing :
Features:
1. Low Insertion Loss: The design of the 2.4mm waterproof RF adapter focuses on optimizing electrical performance, with low insertion loss being one of its notable features. This means that the energy loss of the signal when connecting or disconnecting is minimized, which is crucial for maintaining signal integrity and system performance.
2. Durability: Made from high-quality materials and precise manufacturing processes, the adapter's durability and long-term stability are ensured. This durability is reflected in its ability to withstand multiple plugging and unplugging operations without damage, thereby ensuring equipment reliability and reducing maintenance costs.
3. Corrosion Resistance: The 2.4mm waterproof RF adapter possesses strong corrosion resistance, making it suitable for various harsh environmental conditions. Whether in high humidity, high salinity, or other corrosive environments, this adapter can maintain stable performance.
Advantages:
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
1. High-Frequency Network Analyzers: In the field of precision measurement and network analysis, the 2.4mm waterproof RF adapter is widely used in high-frequency network analyzers. This adapter can provide stable connections up to frequencies of 50GHz, making it particularly suitable for measurements requiring high accuracy and reliability.
2. Millimeter Wave Instrument Systems: Thanks to its small size and high-frequency performance, the adapter is also widely used in various millimeter wave instruments and systems. These systems include high-frequency communication equipment and scientific research instruments, where there are strict limitations on the size and weight of connectors, and the 2.4mm waterproof RF adapter meets these requirements perfectly.
Our Main Products
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
Related Products:
1.Waterproof 2.4mm Female to Female RF Adapter Stainless Steel
2.Female 2.4mm Flange Mount RF Connector
