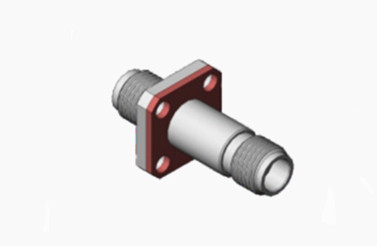

2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel

2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel
2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel 2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel

Large Image :  2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ISO-9001-2015
Model Number: 2.4(S)-KFK3G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 5-7 workdays(for stocks)
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Product Name: 2.4mm RF Coaxial Conector Plating: Passivated
Impedance: 50Ω Certificate: ISO-9001-2015
Type: Female Lifetime: 500Cycles
Application: Computer/LANs Material: Stainless Steel
Highlight:

Stainless Steel 2.4mm RF Connectors

,

Passivated Plating 2.4mm RF Connectors

,

Waterproof 2.4mm RF Connectors

2.4mm Milimeter Wave Waterproof Stainless Steel Female to Female RF Connectors


The 2.4mm type product is a high-performance millimeter wave connector with a frequency of 50GHz. It uses an air interface threaded connection and has characteristics such as small size, lightweight, high usage frequency, and reliable connectivity. This makes it widely used in high-frequency microwave measurements and millimeter wave devices.

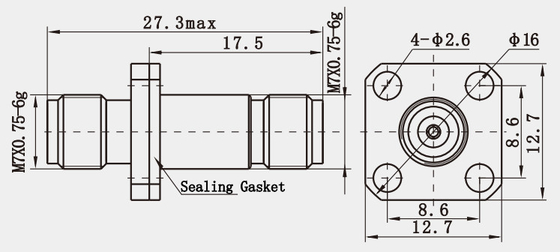

Outline Drawing:(mm)
2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel 0



Specification(mm):

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ


Contact Resistance

Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f



Detailed Drawing (mm):
2.4mm Female to Female RF Connectors with Passivated Plating Waterproof Stainless Steel 1
Features:
 1. Wide Frequency Range: Supporting a frequency range from DC to 50GHz, this adapter covers a wide range of wireless communication bands, including many microwave and millimeter wave applications. Such broadband capabilities make it an ideal choice for a variety of high-frequency applications.
2. Low Standing Wave Ratio: A low standing wave ratio indicates that the adapter has excellent impedance matching and minimal signal reflection within the specified frequency range. This is particularly important for maintaining signal quality and maximum transmission efficiency in the system.
3. High Plug Retention: Thanks to its superior structure and materials, the 2.4mm waterproof RF adapter can withstand up to 3000 plugging and unplugging operations, far exceeding the durability standards of ordinary connectors. This makes it especially useful in situations where the connection configuration needs to be changed frequently.


Advantages :



 Normal productsElite products
Frequency RangeDC~40GHzDC~65GHz
VSWR≤1.35≤1.3
Durability300 Cycles>500 Cycles


Application:
1. Data Transmission: For application scenarios requiring fast, large-scale data transmission, such as aerospace equipment, the 2.4mm waterproof RF adapter provides an efficient and reliable connection method. Its design ensures stable performance in extreme environments, whether in high vibration or temperature fluctuations.
2. Test and Measurement Equipment: In the field of testing and measurement, this type of adapter is commonly used to connect various devices to ensure the highest signal integrity and testing accuracy. For example, in the characteristic testing of microwave devices, using the 2.4mm waterproof RF adapter can reduce signal loss and reflection, thereby improving the accuracy of test results.

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your detai
ls.
