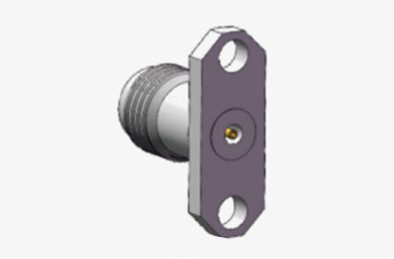

50Ω Stainless Steel Female RF Coaxial Connector Lifetime 500Cycles for Industrial

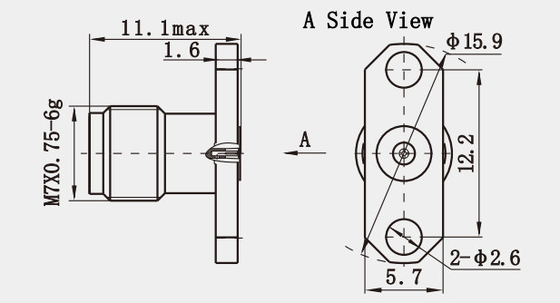

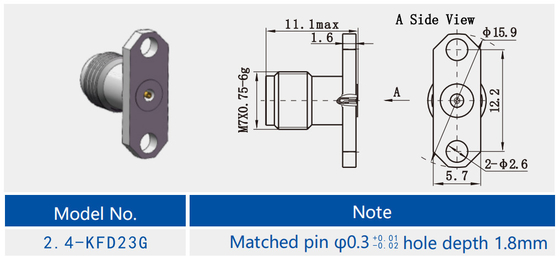

Detailed Drawing:

Features:

The characteristics of the 2.4mm microstrip RF connector primarily include its compact design, high-frequency performance, strong compatibility, durability, and wide range of applications. This type of connector is a key component in modern communication technologies, especially with the increasing use of millimeter wave bands.
The 2.4mm microstrip RF connector is designed for compactness and precision, with an outer conductor diameter of just 2.4mm, making it excel in space-constrained, high-precision applications. The connector is suitable for frequencies up to 50GHz, meeting the demands of modern high-speed communication systems for transmitting high-frequency signals. It utilizes an air dielectric and optimized design to ensure lower insertion loss and good VSWR (Voltage Standing Wave Ratio) within the high-frequency range, thereby optimizing signal transmission quality.

Advantages:

Application:

This type of connector is widely used in precision measurement due to its high frequency, compact size, and high precision. In the design and testing of high-frequency circuits, the 2.4mm connector provides accurate and stable signal transmission, which is crucial for precise measurement and data analysis. Its design optimizes signal integrity and loss issues, making precision measurements more reliable in laboratories or in the field.
The application in millimeter-wave communication systems is also an important use of the 2.4mm microstrip RF connectors. With the development of 5G and future wireless communication technologies, the demand for high frequencies and large bandwidth continues to increase, making the 2.4mm connector a key connecting component. They can operate at frequencies up to 50GHz, meeting the needs of ultra-high-speed data transmission, and their compact design is conducive to high-density integration in limited spaces.

Our Main Products


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
