| Product Name: | 2.4mm RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Lifetime: | 500Cycles | Application: | Computer/LANs |
| Material: | Stainless Steel | Plating: | Passivated |
| Gender: | Male | Certificate: | ISO-9001-2015 |
| Item: | 2.4mm Straight RF Connectors | ||
| High Light: | CXN3506 RF Coaxial Connector,MF108A RF Coaxial Connector |
||

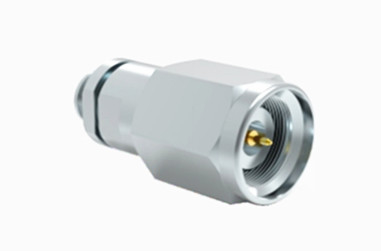

Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A
The 2.4 series connector is a high-performance millimeter wave connector that is designed to operate up to 50GHz and features an air interface threaded connection. It is known for its small size, lightweight, frequent usage, and reliable connections. These connectors are widely used in high-frequency microwave measurements and millimeter wave equipment.
Specification
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||

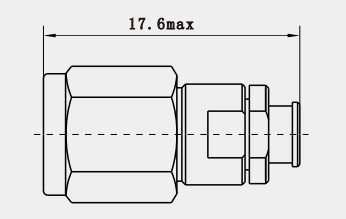

Detailed Drawing of Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A(mm):
Features:
Technological Innovation and Standardization Development: With the advancement of 5G and future 6G communication technologies, the demand for high-frequency, high-speed connectors will further increase. The 2.4mm connector needs continuous technological innovation to meet higher performance requirements. At the same time, standardization is key to future development, ensuring global unified standards to promote the healthy development of the industry.
Advantages:
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
High Precision Requirements: In the field of precision measurement, such as millimeter wave communication systems, there is a high demand for accurate signal transmission. The 2.4mm connector, with its high performance and low loss characteristics, ensures the integrity of the signal and the accuracy of the measurement.
Repeatability and Durability: The 2.4mm connector has a plugging number between 500 to 1000 times and features self-righting, effectively protecting the female socket. This improves the reusability and damage resistance of the connector, making it highly suitable for the long-term reliable operation needs of precision measurement equipment.
