SSMA Series Female Mini SMA RF Connector For 1#Semi-rigid/flexible Cable

Large Image : SSMA Series Female Mini SMA RF Connector For 1#Semi-rigid/flexible Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	SSMA-KFB05-4

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,00 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SSMA RF Connector	Plating:	Gold Plating
Gender:	Female	Impedance:	50Ω
Durability:	500 Cycles	Body:	Brass
Application:	Audio/vedio/microwave	Type:	SSMA
Highlight:	Mini SMA RF Connector , flexible Cable SMA RF Connector , Female SMA RF Connector

SSMA Series Female Mini SMA RF Connector for 1#Semi-rigid/flexible Cable

The SSMA Series RF coaxial connector is an even more compact variant of the SMA connector, recognized for its diminutive dimensions, wide frequency range, and high reliability. This type of connector is widely deployed across diverse sectors, including aviation, aerospace, and microwave communications.

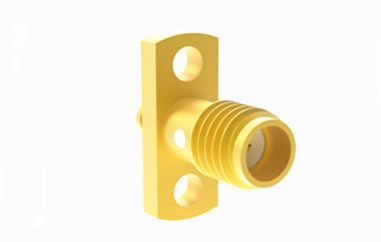

SSMA Series Female Mini SMA RF Connector For 1#Semi-rigid/flexible Cable 0

Key Features:

1. Environmental Stability: SSMA connectors can withstand various environmental conditions, including temperature changes, humidity, vibration, and mechanical shock.

2. Easy Installation: Their smaller size and streamlined design make SSMA connectors easy to install and route in dense or compact designs.

3. Versatile Interface Options: SSMA connectors are available in different interface types, such as straight-through, right-angle, and panel-mount, to accommodate different circuit and equipment layouts.

Specification of SSMA Rf Connectors:

Note:The frequency of the model are based on the data in the product specification sheet.

Electronic and Material Characterials
Impedance		50Ω
Frequency Range		DC~30GHz
Rated Voltage		250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		750 VRMS (Maximum sea-level)
Insulation Resistance		≥5000MΩ
Center conductor	Male	Copper Alloy gold plated
	Female	Beryllium Bronze gold plated
Shell and other metal parts		Copper Alloy gold plated
Crimping Sleeve		Copper Alloy Nickel Plated
Insulator		PTFE
Seal ring		Silicon rubber
Durability		500 Cycles

Product Cataloge:

RF Adapter

SMA RF Connector

SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Application:

1. Telecommunications: Within telecommunications infrastructure, SSMA connectors may be used to connect base stations and other communication equipment.

2. Wireless Communication: In wireless networking equipment like wireless routers and wireless network cards, SSMA connectors help facilitate high-speed data transfer.

3. Automotive Industry: In certain automotive applications, such as vehicle networking communication systems, SSMA connectors can be used to ensure stable signal connections.

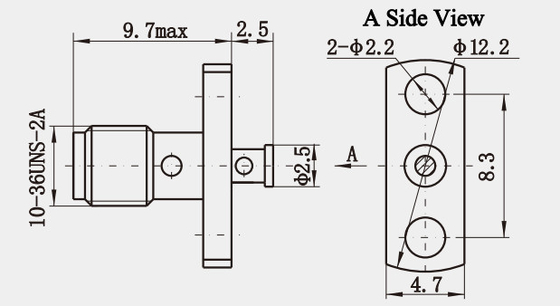

Interface Dimentions:

SSMA Series Female Mini SMA RF Connector For 1#Semi-rigid/flexible Cable 1

Related Product

1.Mini SMA (SSMA) Microstrip series 2 Hole Flange Connector

SSMA Series Female Mini SMA RF Connector For 1#Semi-rigid/flexible Cable 2

Model No.	L	L1	L2	L3	L4	D	D1	D2	D3
SSMA-KFD2	15.6	3.2	2.7	4.8	8.3	0.88	4.6	12.3	2.4
SSMA-KFD8	11.9	0	2.2	4.8	8.3	0.88	/	12.3	2.4
SSMA-KFD10	11.1	0	1.4	4.8	8.3	0.88	/	12.3	2.4
SSMA-KFD19	14.4	3	1.7	4.8	8.3	0.7	4.6	12.3	2.4
SSMA-KFD121	14.6	3.2	1.7	4.8	8.3	0.3	4.6	12.3	2.4
SSMA-KFD133	17.5	4	3.8	5.8	8.3	0.88	4.6	12.3	2.4
