| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMP Male RF Adapter | Mount Method: | PCB Mount |
| High Light: | ASMP Male RF Connector,Full Detent RF Connector,PCB Mount RF Connector |
||

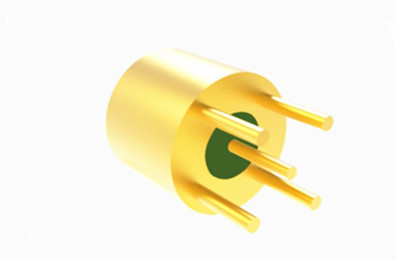

ASMP Male PCB Mount High Performance Full Detent RF Connector
ASMP is an innovative blind mate RF connector that shares the same structure and application method as SMP. It boasts an outline dimension approximately 22% larger than its SMP counterpart, with a transmitted power capacity that is significantly higher by about 30% to 50%. This makes it highly suitable for board-to-board connections, modular dense packaging, and scenarios requiring high power handling. The male SMP connector offers two interface designs - full detent and smooth bore, while the female connector features a singular interface compatible with all types of male connectors.
Note:The specific data of the model are based on the data in the product specification sheet.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar Alloy
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
brass/beryllium bronze/Kovar Alloy/copper alloy/stainless steel passivated
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||
Features:
Single Interface Female: The female ASMP connector has a single interface that can mate with any type of male connector, ensuring compatibility across different interface styles.
Space-Efficient Design: With its larger outline, it still accommodates modular intensive mounting, indicating that it is designed to save space while providing high-density interconnect solutions.
Board-to-Board Connections: The design meets well for board-to-board connections, which is essential for compact electronic assemblies where space is at a premium.

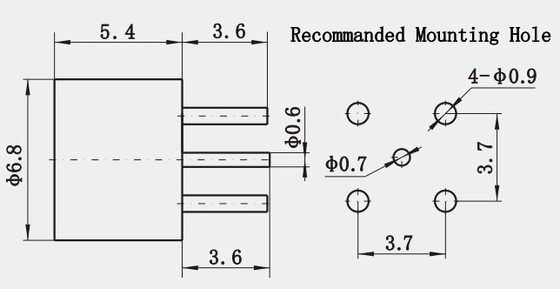

Outline Drawing of ASMP Male PCB Mount High Performance Full Detent RF Connector
Application:
1. Test Equipment: In test and measurement equipment, ASMP connectors can provide a secure connection for high-frequency signals without compromising the accuracy of the measurements due to their stable electrical performance.
2.Industrial Applications: The ability to handle higher power makes ASMP connectors suitable for industrial applications, such as robotics, manufacturing control systems, and any environment where there's a need for reliable data transmission under challenging conditions.
3. Consumer Electronics: While not as common as in other sectors, ASMP connectors could be used in high-end consumer electronics where there's a demand for high-performance connectivity, such as in certain types of audio/video equipment or high-end cameras.
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
