Product Details:
Payment & Shipping Terms:
|
| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | ASMP Female RF Connector | Frequency Range: | DC-26.5GHz, DC-24GHz(hermetic Product) |
| High Light: | High Performance ASMP Female Cable Connector,ASMP Female Cable Connector for Cable |
||

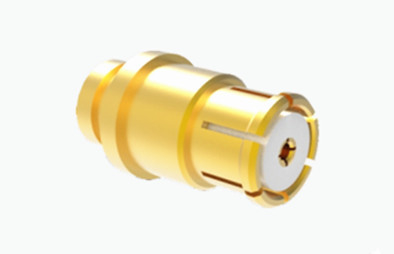

High Performance ASMP Female Cable Connector for 2#Semi-flexible/2#Semi-rigid Cable
The ASMP is a novel blind-mate RF connector that shares the same structural design and method of use as the SMP. Its outer dimension is approximately 22% larger than the SMP, resulting in an increase in transmission power by nearly 30% to 50%. The ASMP is particularly well-suited for board-to-board connections, dense modular mounting, and applications with high power requirements. The male SMP connector is available in two interface types - full detent and smooth bore, while the female connector has a singular interface compatible with both types of male connectors.
Note:The specific data of the model are based on the data in the product specification sheet.
Features:
1. Size: The outer dimension of the ASMP is approximately 22% larger than the SMP, providing greater mechanical strength and durability.
2. Transmission Power: Due to its larger size, the ASMP can deliver transmission power that is 30% to 50% higher than the SMP, making it suitable for applications requiring higher power.
3. Suitability: ASMP is particularly well-suited for board-to-board connections, dense modular mounting, and applications with high power demands.
4. Reliability: Its design provides reliable connections, which are crucial for ensuring signal integrity and long-term performance.
5. Frequency Range: The ASMP is designed to operate within a specific frequency range, making it suitable for various communication and test equipment applications.
6. Environmental Resistance: ASMP connectors typically have good environmental resistance, capable of withstanding temperature variations, vibrations, and other factors that could affect performance.

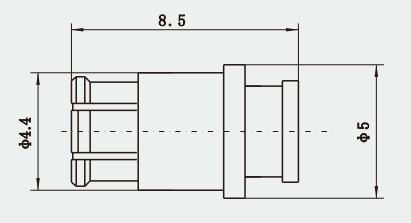

Outline Drawing of
High Performance ASMP Female Cable Connector for 2#Semi-flexible/2#Semi-rigid Cable
Install Introduction:
Application:
1. Communications Equipment: In telecommunications hardware such as routers, switches, and base stations, where high-frequency signals need to be transmitted reliably.
2. Test and Measurement: In test equipment that requires high-power handling capability and precision in signal transmission, such as network analyzers and signal generators.
3. Industrial Automation: For board-to-board connections in industrial control systems, robotics, and other automation equipment.
4. Broadcasting and Satellite: In broadcast equipment and satellite communication systems where high power and minimal signal loss are vital.
5. High-Power Applications: For any application requiring higher power handling than standard RF connectors, such as in high-power amplifiers or transmitters.
Related Products:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
