Product Details:
Payment & Shipping Terms:
|

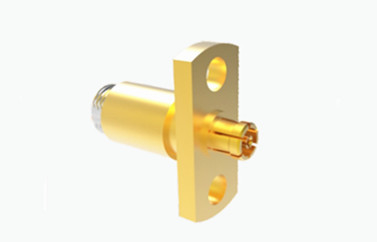

| Product Name: | SSMP Connector | Gender: | Female |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* | Insulation Resistance: | ≥2000MΩ |
| High Light: | 2-hole Flange RF Connector,SSMP Female RF Connector,Gold Plated SSMP Connector |
||
The SSMP interconnect system utilizes a floating female-to-female adapter, commonly known as a "bullet," to facilitate the stacking of boards equipped with an SSMP male PCB connector. The robust construction and capacity to tolerate radial and axial misalignment enable a blind-mate interconnect solution that can endure numerous mating/unmating cycles without any deterioration in electrical performance.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
1. High-Performance Computing (HPC): For HPC applications requiring large amounts of memory and high-speed data access, SSMP connectors offer an efficient way to configure high-capacity memory solutions.
2. Industrial and Medical Devices: In space-constrained industrial and medical applications, SSMP connectors help designers integrate more functionality into a smaller space while maintaining reliability and durability.
3.Telecommunications Equipment: Wireless and wired communication equipment can use SSMP connectors to increase spectral processing capabilities and signal processing abilities, supporting more complex communication protocols and higher data transfer speeds.
Application:
1. Embedded Systems: In embedded systems, SSMP connectors can be used to increase I/O capabilities, enabling the system to handle more input/output operations and improve overall performance.
2. Storage Solutions: In the storage domain, SSMP connectors can be used to connect more storage modules, thereby increasing storage capacity and access speeds.
