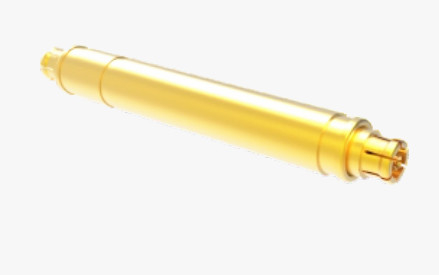

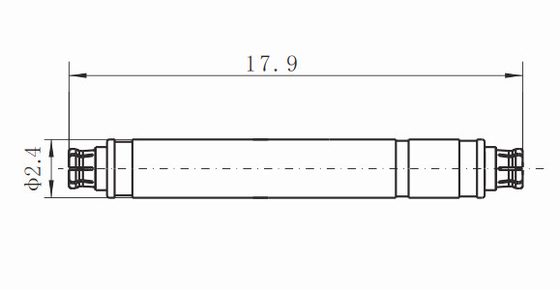

| Product Name: | CSMP Connector | Rated Voltage: | 85VRMS* |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~65GHz |
| Gender: | Jack / Socket | Lifespan: | 500Cycles |
| High Light: | Brass CSMP RF Coaxial Connector,CSMP Female To Female Adapter,Gold Plated RF Coaxial Connector |
||
CSMP is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with SSMP), light weight and wide working bandwidth. It is suitable for the use of board to board connectors in pairs and for the case of modular intensive installation. The plug has two interface forms: full pawl and no threaded hole.
Features
Avionics, radar
Missiles and guidance systems
On board equipment
Telecommunication system
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~65GHz | ||||
| Rated Voltage | 85VRMS* | ||||
| Dielectrics Voltage-resistance | 250VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.2 | ≤1.25 | ≤1.35 | ≤1.4 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
*Satellite communication
*Network
*PC / LAN
*Base station
*Outdoor facilities
*Instrumentation
*Automobile
*Jumper insertion
*Basic facilities
*Radar, microwave
*Telecommunications
*Mobile communication
*Radio and television antenna system
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| TNC RF Connector |
| N Type RF Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| J30J Series Connector |
| Glass-to-metal Hermetic Seals |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
Related 65GHz CSMP male hermetically sealed connector:
1.
| Model number | L | Description |
| CSMP(M)-JHD | 0.75 | CSMP male full detent hermetically sealed connector |
| CSMP(M)-JHD-S | 0.75 | CSMP male smooth bore hermetically sealed connector |
| CSMP(M)-JHD24 | 1.2 | CSMP male full detent hermetically sealed connector |
2.
| Model number | Description |
| CSMP-JHD1 | CSMP male full detent hermetically sealed connector |
Contact Person: Elite
Tel: +8613609167652
