SSMP / SMPM Male Right Angled PCB Mount Full Detent RF Connector DC 50GHz

SSMP/SMPM Male Right Angled PCB Mount Full Detent RF Connector

SMPM is a miniature push-in RF coaxial connector that features small size (compared to mini SMP), lightweight, and wide operating bandwidth. It is suitable for board-to-board connector coupling in modular dense installations. The plug has two interface types: full detent and unthreaded hole, which are ideal for intensive modular installations.

Features:

1, miniaturised design: SMPM connectors are featuring small size and light weight. These microminiature RF coaxial connectors are mainly used for connections between boards within various military equipment, allowing for high-density installations.
2, SMPM connector is suitable for microwave, remote communication, wireless field of a variety of RF cable or microstrip.
3, good electrical characteristics: SMPM connectors have excellent electrical characteristics and minimum mechanical size. in addition, its standard impedance is 50Ω.
4, a wide range of applications: with wide-band characteristics, small size and excellent performance, this series of products become many market areas, such as high-speed digital test and RF test, industrial, mobile communications, aerospace in the field of new solutions.

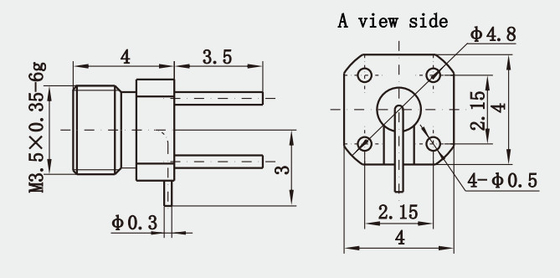

Detail Picture of SSMP/SMPM Male Right Angled PCB Mount Full Detent RF Connector(mm):

Application:

*Network

*Satellite communication

*PC/LAN

*Base station

*Outdoor facilities

*Automobile

*Jumper insertion

*Basic facilities

*Radar, microwave

*Telecommunications

*Mobile communication

*Instrumentation

*Radio and television antenna system

*RF test and measurement boards

*High-speed digital component test

NOTE:
We have over 10,000 types of SMPM RF Coaxial Connector, if the connector you are using is not found, please contact us with your details.
