Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS ISO-9001-2015 | Durability: | 500 Cycles |
| Gender: | Male | Body Style: | Straight |
| Material: | Brass | Plating: | Gold Plating |
| High Light: | Limited Detent RF Connector,Gold Plated RF Connector,Hermetically Sealed RF Connector |
||

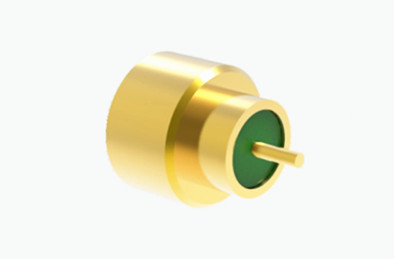

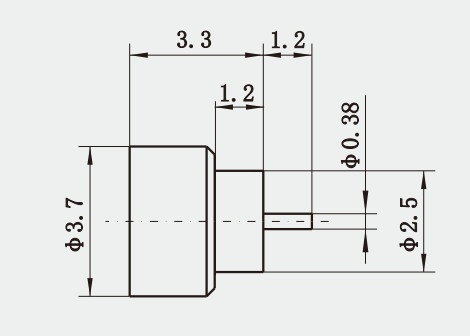

Gold Plated Kovar Alloy Gold Plated Hermetically Sealed Limited Detent RF Connector
The SMP interface is a subminiature connector that matches the size of MMCX connectors but extends its operational range to a broad frequency span from DC to 40GHz. The SMP interconnect series utilizes floating female-to-female adapters, often referred to as bullets, enabling the stacking of boards fitted with SMP male PCB connectors. This robust construction, coupled with its capacity to accommodate both radial and axial misalignments, facilitates blind mating interconnections. As such, it is widely utilized in miniaturized high-frequency coaxial modules where compact design and high-frequency performance are crucial.
1. Compact Size: SMP connectors are designed to be extremely compact, making them ideal for use in space-constrained applications.
2. High Performance: SMP connectors can support frequencies up to 40 GHz, making them suitable for broadband applications.
3. Push-On Connection: SMP connectors utilize a push-on mating system, which facilitates easy connection and disconnection.
4. Multiple Interface Options: The SMP plug offers various interface options, including full detent, limited detent, and smooth bore (with break-away), to accommodate different interconnect needs.
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Applications
1. Aerospace: In the aerospace industry, SMP connectors are commonly found in aircraft and spacecraft communication systems, navigation systems, and instrumentation due to their ability to withstand extreme temperature variations and vibrations.
2. Telecommunications: RF components within telecommunications infrastructure, such as base stations and antenna systems, may utilize SMP connectors to maintain high signal quality.
3. Wireless Communications: Mobile phones, wireless routers, and other wireless communication devices may use SMP connectors to connect internal high-frequency circuits.
4. High-Frequency Electronics: Any electronic device that requires high-frequency signal transmission, such as radar systems, satellite communications, and high-speed data transmission equipment, may utilize SMP connectors.
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Other SMP Female to Female Adapter Products:
1.
| Model No. | Description |
| SMP-KK1 | SMP female to female adapter with length 26mm |
2.
| Model No. | Description |
| SMP-KK2 | SMP female to female adapter with length L=18.2mm |
| SMP-KK10 | SMP female to female adapter with length L=17.8mm |
3.
| Model No. | Description |
| SMP-KK3 | SMP female to female adapter with length L=8.1mm |
| SMP-KK8 | SMP female to female adapter with length L=7.75mm |
| SMP-KK22 | SMP female to female adapter with length L=6.45mm |
| SMP-KK26 | SMP female to female adapter with length L=9.45mm |
| SMP-KK29 | SMP female to female adapter with length L=8.5mm |
| SMP-KK46 | SMP female to female adapter with length L=7.2mm |
| SMP-KK105 | SMP female to female adapter with length L=25.5mm |
| SMP-KK106 | SMP female to female adapter with length L=8.6mm |
| SMP-KK117 | SMP female to female adapter with length L=14.65mm |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
