| Connector: | SMP | Product Name: | SMP RF Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Glass: | 7052 7070 |
| Body: | Brass | Detent Type: | Limited Detent |
| High Light: | PCB Mount Limited Detent RF Connector,SMP RF Connector 40GHz,Male SMP RF Coaxial Connector |
||

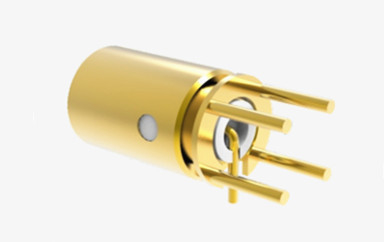

SMP Male PCB Mount Limited Detent RF Connector Engagement Depth 2.79
The SMP is an ultra-miniature RF coaxial connector featuring a push-on or snap coupling mechanism, notable for its diminutive form factor, lightweight construction, exceptional resistance to seismic activities, and wideband operation capabilities. It is engineered to support frequencies up to 30GHz, with some models capable of extending this range up to 40GHz. The plug variant of the SMP presents three distinct interface choices: full detent, limited detent, and smooth bore (which includes variants with anti-backout features). Offering PCB mount, cable mount, and inline adapter options, this connector provides adaptable interconnection solutions suitable for multiple applications such as board-to-board mating, blind mating setups, and rack-and-panel mounting scenarios, all while maintaining high levels of packaging density. The SMP is an ideal connector for environments that demand high reliability and modularity.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

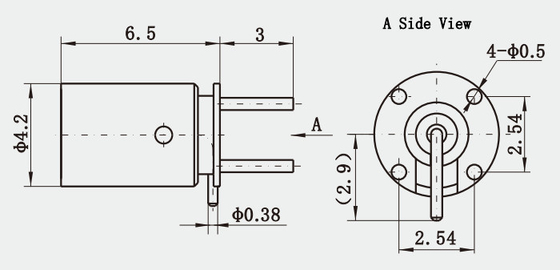

Detailed Drawing
Applications
1. Modular Electronic Devices: The small form factor of SMP connectors makes them ideal for use in modular electronic systems where there is a need for high-density interconnections. This is particularly prevalent in industries such as aerospace, defense, and telecommunications equipment where space is at a premium.
2. RF/Microwave Applications: SMP connectors are frequently used in radio frequency (RF) and microwave applications because they can handle a broad range of frequencies, from DC to 40 GHz or even higher. This makes them suitable for communication systems, antenna connections, and broadband installations.
3. High-Speed Data Transmission: With the capability to support high frequencies, SMP connectors are also used in applications that require high-speed data transmission, such as in networking equipment and other digital communication systems.
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
