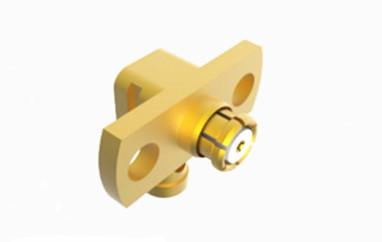

SMP Female Right Angle 2-hole Flange RF Connector For CXN3506/MF108A Cable

Large Image : SMP Female Right Angle 2-hole Flange RF Connector For CXN3506/MF108A Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	SMP-KWF506-271

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMP Female RF Coaxial Conector	Impedance:	50Ohm
Certificate:	CE ROHS	Gender:	Female/Jack
Life Span:	500Cycles	Body Style:	Right Angle
Material:	Brass	Mount Method:	Flange Mount
Frequency Range:	DC~40Ghz
Highlight:	Right Angle Flange RF Connector , MF108A Cable Flange RF Connector

SMP Female Right Angle 2-hole Flange RF Connector for CXN3506/MF108A Cable

SMP is a subminiature push-on or snap coupling RF coaxial connector characterized by its small size, light weight, and excellent seismic performance with a wide operating bandwidth. It can handle frequencies up to 30GHz, while our SMP connector product can achieve 40GHz. The plug comes in three interface forms: full detent, limited detent, and smooth bore (including with braking).

Electrical Characteristics:

Note:The specific data of the model are based on the data in the product specification sheet.

Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Insulation Resistance	≥2000MΩ
Dielectrics Voltage-resistance	500VRMS*
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

Features and Benefits:

1. Versatile Interface Options: SMP plugs offer various interface forms such as full detent, limited detent, and smooth bore (including with brakes) to accommodate different connection needs.

2. Multiple Mounting Options: SMP connectors provide PCB mounting, cable mounting, and in-series adaptors, offering flexible interconnection solutions for board-to-board, blind mating, and rack-and-panel applications.

3. Maintain Packaging Density: The design of SMP connectors helps maintain connectivity in applications requiring high-density packaging.

4. High Reliability Modular Integration: They are suitable for installation situations demanding high reliability in modular integration.

Applications:

1. Instrumentation: Laboratory instruments, precision measurement devices, and other research equipment requiring accurate signal transfer might also utilize SMP connectors.

2. Consumer Electronics: Some high-end consumer electronics, such as digital cameras, high-performance remote controls, and advanced audio/video equipment, may use SMP connectors for high-speed data transmission.

3. Automotive Electronics: With advancements in automotive technology, SMP connectors may be used in vehicle communication systems and navigation devices.

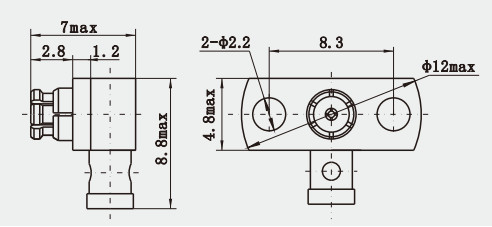

Outline Drawing and Picture of

SMP Female Right Angle 2-hole Flange RF Connector for CXN3506/MF108A Cable:

SMP Female Right Angle 2-hole Flange RF Connector For CXN3506/MF108A Cable 0

Product Cataloge:

RF Adapter

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
