| Product Name: | SMP RF Coaxial Connector | Plating: | Passivated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | ISO-9001-2015 |
| Lifespan: | 500 Cycles | Style: | Straight |
| Material: | Stainless Steel | Mount Method: | 2 Hole Flange |
| Gender: | Male | ||
| High Light: | 2hole PCB Mount RF Plug,Limited Detent PCB Mount RF Plug,Stainless Steel SMP Male RF Plug |
||

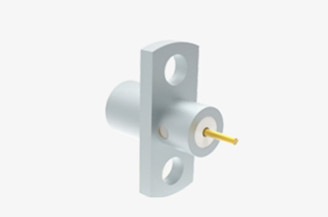

Stainless Steel SMP Male Limited Detent PCB Mount RF Plug with 2-hole Flange
The SMP interface is a compact connector system comparable in size to MMCX connectors, yet it supports a wide frequency range from DC to 40 GHz. The SMP interconnect series utilizes floating female-to-female adapters, often referred to as bullets, which enable the stacking of boards that have SMP male PCB connectors. This robust design enables resistance to radial and axial misalignments, facilitating blind mating connections. It is frequently employed in miniaturized high-frequency coaxial modules due to its reliable and precise interconnection capabilities.
1. Vibration and Shock Resistant: Due to their robust construction and high quality materials, these connectors are able to maintain a stable connection under vibration and mechanical shock.
2. Low Reflection Loss: SMP connectors are designed to minimize reflection loss, which is important to maintain the integrity of high frequency signals.
3. Corrosion Resistance: The stainless steel material gives SMP connectors excellent corrosion resistance, making them suitable for use in applications that may be affected by corrosive environments.
Translated with DeepL.com (free version)
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
|
Center Resistance |
Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

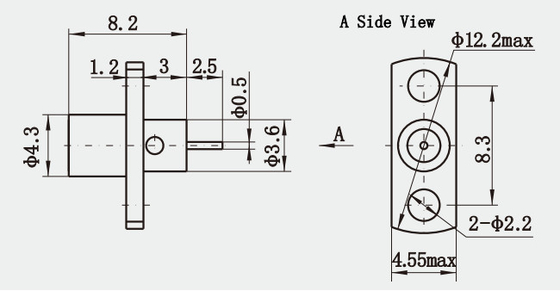

(Unit:mm)
Applications
1. Medical Devices: Medical imaging, diagnostic instruments, and surgical tools use SMP connectors for transmitting high-resolution and high-frequency signals.
2. Automotive Electronics: As cars become more electronic and intelligent, SMP connectors could be used in advanced driver-assistance systems (ADAS), in-car communication systems, etc.
3. Industrial Automation: In industrial automation and control systems that require high-speed data communication and precise control, SMP connectors provide reliable connectivity.
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
