| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMP Female RF Connector | Mount Method: | Blind Mate |
| Rated Withstand Voltage: | 170VRMS* | Medium Pressure: | 500VRMS* |
| High Light: | Bullet SMP Female RF connector,Gold Plated SMP Female RF connector |
||

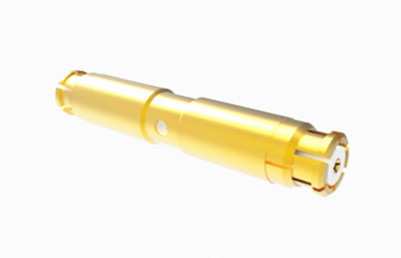

Gold Plated SMP Female to Female Bullet RF Connector/Adapter
SMP is a miniature push-on RF coaxial connector adapter, characterized by its small size, lightweight, excellent seismic performance, and wide operating bandwidth. It can operate at frequencies up to 30GHz (our high-performance SMP connectors can reach 40GHz). The plug has three interface forms: full detent, limited detent, and smooth bore (including those with braking). These various interface forms can meet the requirements of axial or radial movement for blind mating in broad-to-broad connector coupling applications. It is suitable for installation situations that require high reliability and modular compactness.
Note:The specific data of the model are based on the data in the product specification sheet.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor |
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

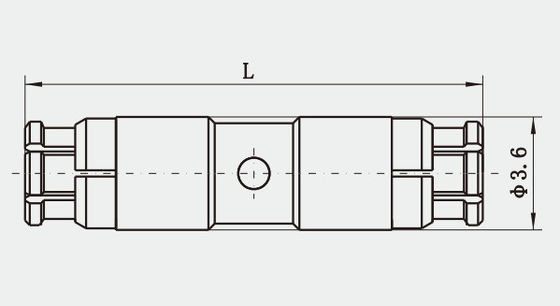

Outline Drawing of
Gold Plated SMP Female to Female Bullet RF Connector/Adapter
Related SMP female to female Adapters
1.
| Model No. | Description |
| SMP-KWFK | SMP female to female rf adapter, right angle, 2 holes flange. |
2.
| Model No. | Description |
| SMP-KK72 | SMP female to female rf adapter |
3.
| Model No. | L(mm) | |
| SMP-KK59 | 16 | Compression Length:15mm, right end mated with smooth bore only. |
| SMP-KK62T | 13 | Compression Length:12mm, right end mated with smooth bore only. |
| SMP-KK62T-Y1 | 13 | Compression Length:12mm, right end mated with smooth bore only. 192H Salt Fog Resistance |
| SMP-KK190T | 12.7 | Compression Length:11.9mm, right end mated with smooth bore only. |
4.
| Model No. | L(mm) |
| SMP-KK99 | L=9.6, SMP female to female rf adapter |
| SMP-KK166 | L=10.2, SMP female to female rf adapter |
| SMP-KK175 | L=6.7, SMP female to female rf adapter |
| SMP-KK176 | L=7.1, SMP female to female rf adapter |
| SMP-KK177 | L=7.4, SMP female to female rf adapter |
| SMP-KK178 | L=8.1, SMP female to female rf adapter |
| SMP-KK188 | L=10, SMP female to female rf adapter |
| SMP-KK189 | L=9.7, SMP female to female rf adapter |
| SMP-KK192 | L=9, SMP female to female rf adapter |
| SMP-KK239 | L=9.9, SMP female to female rf adapter |
| SMP-KK249 | L=6.7, SMP female to female rf adapter |
5.
| Model No. | Description |
| SMP-KK96 |
L=17.35, SMP female to female rf adapter |
| SMP-KK97 | L=19.6, SMP female to female rf adapter |
| SMP-KK98 | L=11, SMP female to female rf adapter |
Product Category:
1. RF Connectors Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J, Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers, Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
