| Product Name: | SMP RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ROHS ISO-9001-2015 | Durability: | 500 Cycles |
| Gender: | Male/Plug | Body Style: | Straight |
| Plating: | Gold Plated | Material: | Brass |
| Mount Method: | With Cable | ||
| High Light: | Brass SMP RF Connector,CXN3657 Cable RF Connector |
||

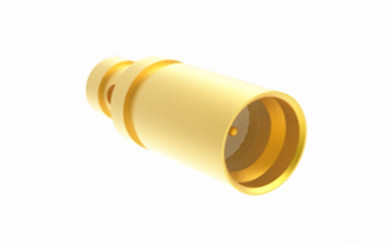

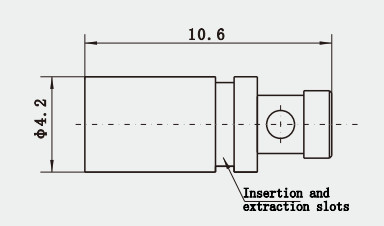

Brass SMP Male Limited Detent RF Connector for CXN3657/MF151A Cable
The SMP interface is a subminiature interface that is the same size as MMCX connectors, yet it offers a frequency range of DC to 40 GHz. The SMP interconnect series relies on floating female-to-female adapters (commonly referred to as "bullets") for achieving stacking of boards equipped with SMP male PCB connectors. This robust structure, along with its ability to withstand radial and axial misalignment, enables blind mating solutions. It is commonly utilized in miniaturized high-frequency coaxial modules.
1. Miniature Design: SMP connectors are extremely compact, making them valuable in space-limited applications such as satellites, aerospace electronics, and medical equipment.
2. Broadband Performance: SMP connectors can handle a wide frequency range, from DC to 40 GHz, which is suitable for various high-frequency communication systems.
3. Blind Mating Capability: These connectors are designed for blind mating, meaning they can be connected without visual inspection, speeding up the assembly process and reducing the chance of errors.
4. Durability and Reliability: The construction of SMP connectors is robust, capable of withstanding vibration and shock, making them ideal for use in harsh environments.
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/ | |
