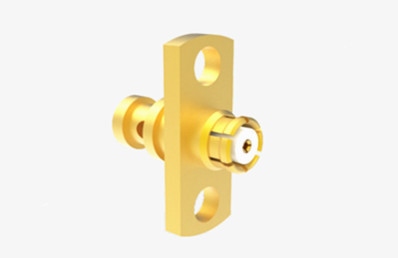

SMP Female Gold-plated RF Connector For CXN3657 / MF151A Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Sn-P Bronze, Gold Plated | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS | Durability: | 500 Cycles |
| Frequency Range: | DC~40GHz | Insulation Resistance: | ≥2000MΩ |
| Insulators: | Glass Sintering/PTFE/PEI | VSWR: | ≤1.5 |
| Highlight: | Gold-plated SMP Female RF Connector,SMP Female Gold-plated RF Connector |
||
SMP Female Gold-plated RF Connector for CXN3657/MF151A Cable
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector that boasts a small size, lightweight design, exceptional seismic performance, and a broad operating bandwidth. It has an operational frequency range of up to 30GHz (our high-performance SMP connectors can even reach 40GHz), and the plug offers three interface options: full detent, limited detent, and an unthreaded hole (including with braking). These various interface forms cater to the necessary axial or radial movement required for blind mating in the coupling of broad to broad connectors. The SMP is suitable for installation scenarios that demand high reliability and modular compactness.

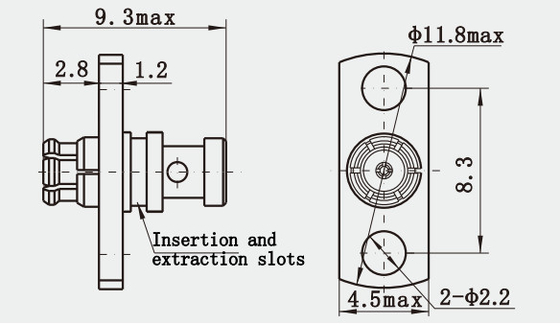

Detailed Drawing :
Specification
Electrical Characteristics | ||||
Impedance | 50Ω | |||
Frequency Range | DC~40GHz | |||
Rated Voltage | 170VRMS | |||
Dielectrics Voltage-resistance | 500VRMS | |||
Insulation Resistance | ≥2000MΩ | |||
Outer conductor | ≤4mΩ | |||
Center conductor | ≤26mΩ | |||
DC~18GHz | 18~26.5GHz | 26.5~40GHz | ||
Straight Connector | ≤1.25 | ≤1.3 | ≤1.5 | |
Angle Connector | ≤1.3 | |||
Adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
Other | ≤1.3 | |||
Features and Benefits
| DC to 40 GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Male & Female, Straight & Right Angle choice |
| Push-on or snap coupling |
| PCB & cable mount connectors |
| Full detent, Limited detent and Smooth bore |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
Applications
1.Wireless Communication Equipment: SMP connectors are often used in the manufacturing of cell phones, wireless routers, and other wireless communication devices because they provide high-performance connections while occupying minimal space.
2.Test Equipment: In the field of testing and measurement, SMP connectors can be found on spectrum analyzers, network analyzers, and other test instruments for transmitting high-frequency signals.
3.Medical Devices: In the medical industry, SMP connectors can be used in various portable or mobile diagnostic devices, such as electrocardiogram (ECG) machines and ultrasound equipment.
4.Instrumentation and Control Systems: In industrial automation and process control industries, SMP connectors can be used for interfaces in various sensors and actuators.
Product Cataloge:
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
